Vacuum dryer cabinet for heat-sensitive products

For manufacturers handling heat-sensitive products, achieving precise moisture control and gentle drying is critical, ensuring product quality and consistency throughout processing.

Processes and Dries Heat-Sensitive Products

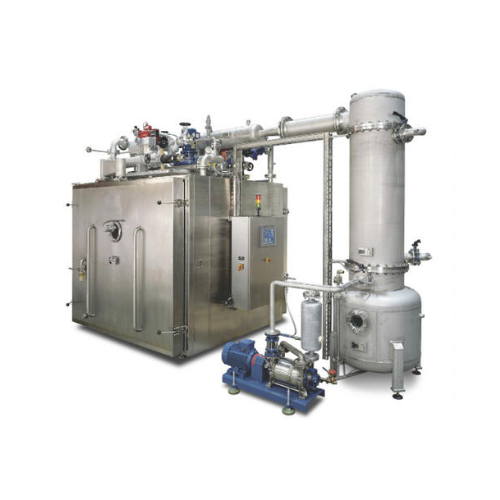

The DryCab from Bucher Unipektin is an engineered vacuum and freeze dryer cabinet tailored for the food and pharmaceutical industries, adept at handling heat-sensitive products like instant coffee, herbal teas, and fruit or vegetable powders. Utilizing vacuum drying technologies, including freeze-drying (lyophilization), the DryCab minimizes oxidation and contamination while ensuring product quality through gentle drying procedures. Designed to operate within a broad vacuum range of 0.5 to 100 mbar and at temperatures up to 200°C, it accommodates capacities of 1 to 1,000 kg per batch. The system supports automation with PLC and HMI controls, allowing recipe management for consistent, high-quality output. Energy-efficient with options for steam, pressurized water, or thermal oil heating, coupled with steam jet or chilled water condensation for vacuum creation, it effectively reduces operational costs. Constructed with GMP hygiene standards and designed for durability, the DryCab offers seamless integration into existing production lines and ensures high product availability and minimum loss with an automatic 3-step CIP system for thorough cleaning. Customization options are available to meet specific operational needs, supported by engineering expertise from Bucher Unipektin.

Benefits

  • Ensures product quality by gently drying heat-sensitive materials, preventing oxidation and contamination.
  • Reduces energy consumption with efficient vacuum and thermal system design.
  • Minimizes product loss and downtime with high availability and effective CIP cleaning.
  • Enhances flexibility with configurations for freeze-drying, drying, and sterilization processes.
  • Complies with GMP standards, ensuring industry-specific operational excellence and safety.

General


Applications
Food,Proteins,Fruit and vegetable concentrates,Nutraceuticals,Herbal extracts,Pharmaceuticals
End products
Herbal teas,Vegetable powder supplements,Powdered collagen,Plant-based protein isolates,Vitamin powders,Fruit powder supplements,Pharmaceutical grade herbal capsules,Maltodextrin,Instant coffee
Steps before
Freeze-drying preparation,Product homogenization,Heat-sensitive product sorting,Solution preparation
Steps after
Sterilization,Packaging,Coating,Final product quality check
Input ingredients
coffee,herbs,vegetables,herbal extracts,meat pieces,malt cocoa beverages,malt extracts,reaction aroma,hydrolyzed vegetable proteins,proteins,fruit concentrates,vegetable concentrates,pharmaceutical concentrates
Output ingredients
dried coffee,dried herbs,dried vegetables,dried herbal extracts,dried meat pieces,dried malt cocoa beverages,dried malt extracts,reaction aroma,dried hydrolyzed vegetable proteins,dried proteins,dried fruit concentrates,dried vegetable concentrates,dried pharmaceutical concentrates
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Vacuum Level
0.5 - 100 mbar
Maximum Temperature
200°C
Batch Capacity
1 - 1,000 kg/batch
Heating-Cooling Plate Surface Area
1 - 88 m²
Heating Method
Steam or pressurized water or thermal oil
Cooling Method
Steam jet or chilled water condenser
CIP Method
Automatic 3-Step cleaning cycles
Automation
PLC and HMI with recipe control

Operating Characteristics


Working mechanism
Freeze-drying (lyophilisation) / Vacuum drying
Integrated steps
Drying / Sterilisation (autoclave)
CIP/SIP
Automatic 3-Step cleaning cycles
Batch vs. continuous operation
Batch
Automation level
PLC-controlled with recipe control

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean,CIP capable
Corrosive resistance (e.g. acids)
Strong and durable

Product type Characteristics


Product Sensitivity
Heat-sensitive

Physical Characteristics


Machine footprint
Compact design
Heating-cooling plate surface
1 - 88 m²
Capacity
1 - 1,000 kg/batch
Temperature max.
200°C
Vacuum
0.5 - 100 mbar
Heating method
Steam or pressurized water or thermal oil
Vacuum method
Steam jet or chilled water condenser
CIP
Automatic 3-Step cleaning cycles
Controls
PLC and HMI with recipe control

Custom Options


Control panel type
PLC and HMI with recipe control
Heating option
Steam or pressurized water or thermal oil
Vacuum option
Steam jet or chilled water condenser
Cleaning system
Automatic 3-Step CIP cycles
Design option
Autoclave for sterilisation
