Vacuum coaters for high liquid addition in feed production

Enhance your feed production with precision liquid coating, saturating pellets to their core for improved nutritional delivery and product quality. Ideal for seamlessly integrating into your existing processing line, this solution ensures consistent results batch after batch.

Adds Liquids and Coats Pellets Evenly

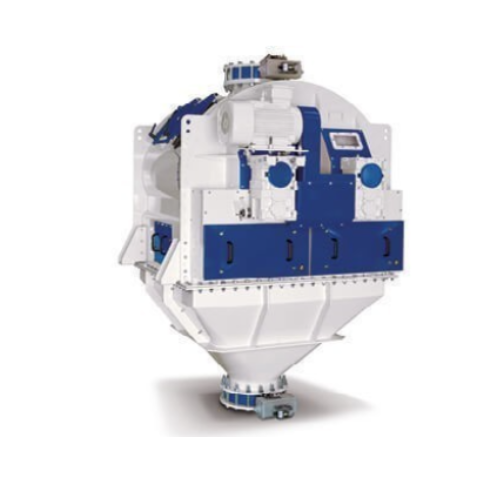

Ottevanger Milling Engineers’ DPMA series vacuum coaters are engineered to significantly enhance liquid incorporation into pellets, improving the quality of aquatic feed, pet food, and livestock feed. The vacuum coating process penetrates the pellet core, ensuring uniform distribution of liquids such as oils and enzymes. Available in sizes from 500L to 2800L, they are well-suited for both batch and continuous operations. Constructed from durable stainless steel grades 304 and 316, they offer superior resistance to corrosion, making them ideal for demanding processing environments. With low energy consumption and easy integration into existing production lines, these machines cater to aquatic feed producers, pet food manufacturers, and feed production companies seeking efficient and reliable processing solutions. Additionally, they support variable operation modes and are equipped with a comprehensive liquid dosing system for precise ingredient delivery.

Benefits

  • Ensures precise liquid saturation for improved pellet digestibility and nutritional value.
  • Minimizes energy usage, lowering operational costs.
  • Provides corrosion-resistance for longevity in harsh environments.
  • Reduces manual intervention with automated liquid dosing system.
  • Enhances production flexibility with batch and continuous operation modes.

General


Applications
Pet food,Aquatic feed,Feed production
End products
Dog kibble,Shrimp feed,Fish pellets,Cat food,Poultry feed,Livestock feed
Steps before
Grinding,Mixing,Conditioning,Pelleting
Steps after
Drying,Cooling,Crumbling,Sieving
Input ingredients
pigments,micro-ingredients,oil,aromas,fats,Phytase enzymes,vegetable oil
Output ingredients
pellets,extrudates with added liquids and micro-ingredients
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Capacity
500–2800 L
Drive
7.5–37 kW
Weight
2000–8400 kg
Material
Stainless steel grades 304 and 316
Liquid addition
Up to 30%
Batch operation
Batch-wise process
Energy consumption
Low
Coating method
Vacuum process
Special execution
Vacuum pump set,Weighing frame,Liquid dosing equipment
Powder addition system
Digest

Operating Characteristics


Working mechanism
Batch-wise vacuum coating
Integrated steps
Liquid addition into pellet core
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Energy efficiency
Low energy consumption
Versatile operation
Various feed and pet food applications
CIP/SIP
Manual cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Liquid addition percentage
8% to 30%
Industry application
Feed,Pet food,Aquatic feed

Physical Characteristics


Machine type
Vacuum Coater
Volume Capacity
500–2800 L
Dimensions
Varies by model
Material
Stainless Steel 304 / 316
Drive Power
7.5–37 kW
Weight
2000–8400 kg
Design
Compact
Discharge method
Batch-wise
Footprint
Compact

Custom Options


Material Grade
Stainless Steel 304 / 316
Vacuum Pump Set
Available
Weighing Frame
Included
Liquid Dosing Equipment
Included
Powder Addition System
Available
