Ultra hygienic filler for non-aseptic products

Optimize your production with high-speed filling and sealing of liquid products, ensuring ultra-hygienic standards for bag-in-box packaging, ideal for maintaining product integrity and quality throughout the process.

Fills and Seals Bag-in-Box Liquids

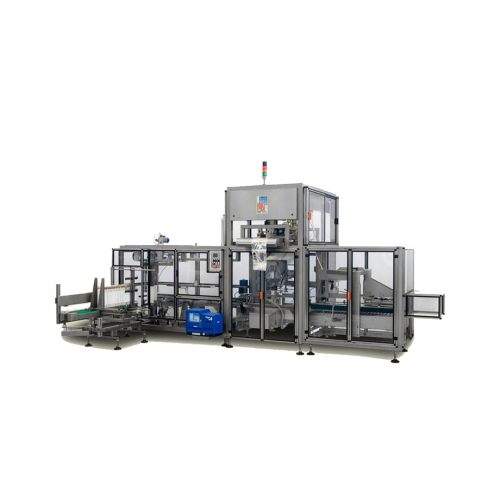

The N.A.F. Ultra Hygienic Filler from FBR ELPO is engineered for efficient bag-in-box filling, specifically catering to the needs of wine producers, mineral water bottling companies, and oil manufacturers. This machine excels in hygienic environments, making it ideal for non-aseptic filling applications of liquids such as wines, bottled mineral water, and various oils. With a double-headed version, it achieves speeds of up to 1,200 bags per hour, optimizing production efficiency. Easily integrated into existing production lines, it offers flexibility with compatibility for all spout and bag types available on the market. Its robust design includes compatibility with a complete line setup for carton formation, transfer, filling, and sealing, all while maintaining high hygiene standards. The system is engineered for continuous, high-speed operations, ensuring minimal downtime and consistent throughput. Additionally, it supports seamless integration with upstream and downstream processes, enhancing overall line productivity. Designed for durability and easy maintenance, the N.A.F. filler ensures long-term operational reliability.

Benefits

  • Enhances production efficiency with the capability to fill up to 1,200 bags per hour.
  • Supports cost-effective operations through integration with carton formation and sealing processes.
  • Minimizes product contamination with a hygienic design tailored for non-aseptic liquid filling.
  • Offers operational flexibility by accommodating different bag and spout types.
  • Simplifies maintenance and reduces downtime with durable, easy-to-clean construction.

General


Applications
Mineral water,Vegetable oils,Mineral oils,Wine
End products
Extra virgin olive oil,Bottled mineral water,Sunflower oil,Bottled motor oil,Red wine,Rapeseed oil,Hydraulic oil,White wine
Steps before
Carton Formation,Transfer
Steps after
Sealing,Packing
Input ingredients
wine,mineral water,vegetable oils,mineral oils
Output ingredients
filled webbed bags,3-liter bags,5-liter bags,10-liter bags,20-liter bags
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Filling capacity
3-20 liters
Operating speed
1200 bags/h (double-headed version)
Bag compatibility
All types of spouts and bags
Integration capability
Carton formation,transfer,filling,and sealing

Operating Characteristics


Working mechanism
Ultra-hygienic filling
Integrated steps
Carton formation,transfer,filling,sealing
CIP/SIP
CIP compatible
Batch vs. continuous operation
Continuous
Automation level
Integrated PLC system
Changeover time
Quick changeover

Material Compatibility


Biological compatibility
Suitable for food-grade applications
Cleanability
Ultra-hygienic design
Corrosive resistance (e.g. acids)
Resistance to mineral oils and water

Product type Characteristics


Product type
Wine / Mineral water / Vegetable oils / Mineral oils

Physical Characteristics


Capacity
1,200 bags/h
Bag size compatibility
3-5-10-20 liter
Spout compatibility
All types on the market
Operating speed
1,200 bags/h (double-headed)
Integration capability
Carton formation,transfer,filling,sealing

Custom Options


Integration possibilities
Carton formation,transfer,filling,and sealing
Bag size compatibility
3-5-10-20 liter webbed bags
Spout and bag compatibility
All types on the market
Operating speed
Up to 1,200 bags/h with double-headed version
