Ultra-fine dry grinding mill for glass and ceramics
Achieve ultra-fine particle sizes and energy savings with a dry grinding system that integrates seamlessly into your production line, ensuring consistent quality and efficiency in processing ceramics, glass, and pigments.
Grinds and Classifies Ultrafine Materials Efficiently

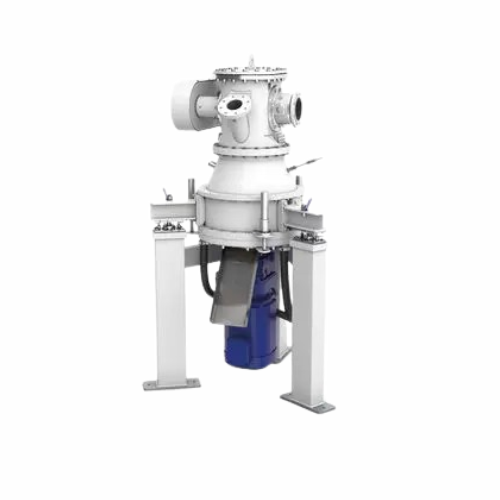

The PULVIS from Hosokawa Alpine is a vertical dry agitator bead mill designed for energy-optimized ultrafine grinding. Its integrated dynamic classifier ensures precision in particle size distribution, crucial for applications in ceramics, glass, and battery materials. This system operates efficiently, achieving d97 < 1μm, with energy savings up to 80% compared to conventional methods. The working principle involves agitated media that combine impact grinding and attrition, transported by gasflow for cooling and efficient separation. Suitable for continuous production, it handles various materials including ceramics and metal oxides. The PULVIS also features ceramic lining for wear protection, easy assembly and maintenance, and customizable multi-wheel classifier heads for enhanced fineness and throughput. This unit is ideal for industries requiring rigorous particle size management, offering both scale-up from laboratory to production capabilities and compliance with industrial standards.
Benefits
- Achieves significant energy savings, reducing operational costs by up to 80%.
- Produces ultrafine particles, enhancing product quality and consistency.
- Minimizes maintenance with easy-to-clean design and replaceable wear parts.
- Scales efficiently from laboratory to full production, supporting process development.
- Offers enhanced material protection with ceramic lining, prolonging equipment lifespan.
- Applications
- Ceramic materials,Battery materials,Glass materials,Recovered carbon black,Additive manufacturing polymer,Animal feed,Anorganic pigments,Aromas,Fertiliser,Lithium-ion batteries,Industrial materials,Additive manufacturing metal,Technical ceramics,Talc,Sweeteners,Metal oxides,Calcium carbonate
- End products
- Glass beads,3d printed polymer structures,3d printed metal parts,Porcelain tiles,Gcc filler,Aspartame,Lithium iron phosphate crystals,Carbon composites,Urea granules,Titanium dioxide powder,Iron oxide pigments,Cattle feed pellets,Talcum powder,Flavoring extracts,Lithium iron phosphate,Alumina substrates,Black masterbatch
- Steps before
- Purification,Drying,Emulsification,Grinding,Particle Size Analysis,Material Dosing
- Steps after
- Packing,Coating,Tablet Pressing,Product Filtering,Product Packaging
- Input ingredients
- ceramic materials,glass,anorganic pigments,battery materials,ceramic pigments,hydrogen adsorbent alloy,industrial materials,metal oxide,aluminium oxide,glass frits
- Output ingredients
- ultrafine materials,fine product,sub-micron range particle sizes
- Market info
- Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.
- Fineness
- d97 < 1 μm
- Energy Saving
- up to 80%
- Air Flow Rate
- 40–2700 m³/h
- Mill Motor Power
- 2.2–75 kW
- Classifier Motor Power
- 1.4–18.5 kW
- Particle Size Distribution
- Steep
- Cooling Method
- Gas flow injected
- Grinding Mechanism
- Agitated media with impact and attrition
- Classifier Type
- Integrated dynamic classifier
- Automation Level
- Control and automation with blower system
- Energy Efficiency
- Up to 80% energy saving
- Feed Type
- Dry materials
- Max Particle Fineness
- d97,lt
- 1μm
- Airflow System
- Bottom air blower for transport and cooling
- Changeover Time
- Easy assembly and disassembly
- Wear Protection
- Ceramic lining and parts
- Flexibility
- Scalable from lab to production scale
- Dosing System
- Precise product dosing
- Cleaning Method
- Easy cleanability
- Operation Type
- Dry ultrafine grinding
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product type
- Hard materials,ceramic,glass
- Industries
- Ceramics,battery materials,metal oxides
- Machine footprint
- Compact design
- Discharge method
- Conveyor/ Airflow
- Control panel type
- Digital interface
- Wear protection
- Ceramic lining
- Access for cleaning
- Wide access points
- Assembly/Disassembly
- Easy assembly
