Tube filling solution for health and beauty products

Achieve rapid production with precision in tube filling for personal care items, ensuring quick changeovers and minimal downtime, perfect for high-demand environments requiring efficient and versatile packaging solutions.

Fills and Seals Personal Care and Pharma Tubes

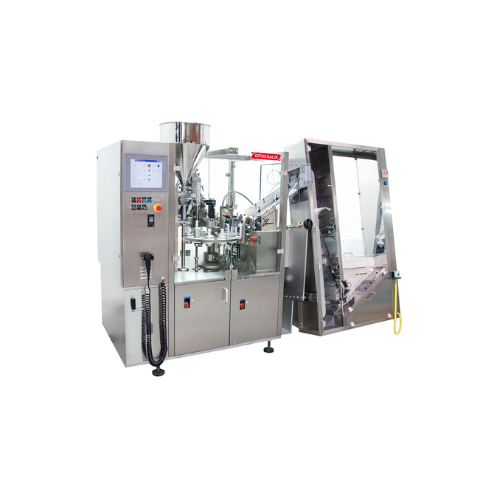

The KX903 from Citus Kalix excels in enhancing efficiency in the cosmetic and pharmaceutical production line. It features an automatic tube loading system, controlled by a single operator, capable of producing up to 90 tubes per minute. This machine is ideal for facial moisturizers, shaving creams, liquid hand soaps, and more, providing versatility across personal care and pharma applications. Its design allows for rapid changeovers, with product changes taking just 5 minutes and size changes under 15 minutes, due to recipe settings registration. Built with a compact, stainless steel unpainted finish, the KX903 is perfect for controlled environments. It is adept at handling all tube types—plastic, metal, or laminate—and meets safety regulations 2006/42/EC, 2014/30/UE, and 2014/35/UE. Its easy dismantling without tools simplifies cleaning, minimizing downtime and ensuring seamless integration into your high-speed, intermittent packaging operations.

Benefits

  • Increases production efficiency with quick product and size changeovers.
  • Minimizes downtime through tool-free disassembly and easy maintenance.
  • Ensures high product quality by handling various tube materials with precision.
  • Supports compliance with key safety regulations for seamless operation.
  • Enhances operational control with single-operator management and recipe registration.

General


Applications
Personal care,Hair care,Sun care,Men's shaving,Cosmetics,Skin,Liquid soaps
End products
Liquid hand soaps,Facial moisturizers,Sunscreen lotion,Hair conditioners,Body creams,Shaving creams
Steps before
Material preparation,Tube feeding
Steps after
Tube sealing,Quality inspection,Packing
Input ingredients
plastic tubes,metal tubes,laminate tubes
Output ingredients
filled tubes,sealed tubes
Market info
Citus-Kalix, part of the Coesia Group, is known for its expertise in designing and manufacturing high-performance packaging equipment, particularly for the cosmetics and pharmaceutical industries, providing innovative, engineered-to-order solutions with a strong focus on quality and precision.

Technical Specifications


Filling speed
90 tubes per minute
Max filling volume
400 ml
Min filling volume
1 ml
Machine depth
1060 mm
Machine height
1850 mm
Machine length
1495 mm
Machine weight
1300 kg
Max pack diameter
50 mm
Min pack diameter
13 mm
Max pack length
230 mm
Min pack length
50 mm
Automation
Automatic tube loading
Packaging material
Aluminium - Laminated - Plastic
Packaging shape
Cylindrical - Oval
Operating mode
Intermittent
Product changeover
5 minutes
Size changeover
Less than 15 minutes
Safety Regulations
2006/42/EC,2014/30/UE,2014/35/UE

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Intermittent
Changeover time
5 min product,10 min size
Cleaning method
Tool-free dismantling

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Tool-free assembly
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Safety Regulations
2006/42/EC,2014/30/UE,2014/35/UE

Physical Characteristics


Machine depth
1060 mm
Machine height
1850 mm
Machine length
1495 mm
Machine weight
1300 kg
Compact footprint
Yes
Material finish
Unpainted stainless steel

Custom Options


Control panel type
Single operator interface
Compact footprint
Yes
