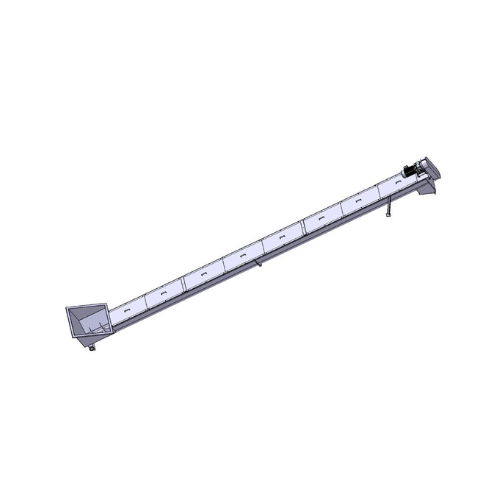

Transport screw conveyor for pomace

Efficiently convey and discharge fruit pomace with a transport screw conveyor designed to handle inclined angles, ensuring seamless integration into your processing line while minimizing residue.

Conveys and Discharges Pomace Efficiently

The Transport Screw Conveyor 400 and 500 from Bucher Unipektin are engineered for efficient handling of fruit and pomace in food, beverage, and agricultural industries. Featuring a U–trough screw design, these conveyors effectively move material at an inclination up to 30°, supported by a powerful gear motor and chain pulley system. Constructed in stainless steel (DIN 1.4301, AISI 304), they offer robust corrosion resistance in demanding environments.

With screw diameters of 400mm and 500mm respectively, these units deliver a processing capacity of up to 75m³/h and 125m³/h at 30° inclination, offering reliable throughput for continuous operations. Integrated automatic cleaning features, such as rinseable trays and nozzles, ensure minimal maintenance downtime. These conveyors are suited for seamless integration into existing processing lines, equipped with variable designs and optional outlet gates for tailored solutions in pomace and fruit pulp management.

Benefits

  • Enhances material handling efficiency with robust throughput capabilities.
  • Reduces downtime through integrated cleaning features and automatic dirt removal.
  • Offers scalable solutions with configurable designs and optional outlet gates.
  • Provides long-lasting durability with corrosion-resistant stainless steel construction.
  • Facilitates seamless integration into existing production lines for continuous operations.

General


Applications
Pomace,Fruit
End products
Apple pomace,Grape pomace,Fruit pulp,Fruit paste
Steps before
Sorting,Washing,Inspection
Steps after
Storage,Further Conveying,Processing
Input ingredients
fruit,pomace
Output ingredients
conveyed pomace,discharged fruit,storage site
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Screw Diameter
400 mm
Screw Diameter
500 mm
Length
Up to 25 m
Screw Speed
101 U/min
Motor Power
4–15 kW
Motor Voltage
400 V
Frequency
50 Hz
Capacity at 30°
75 m³/h
Capacity at 30°
125 m³/h
Inclination
Up to 30°
Screw Design
U-trough,completely covered
Construction Material
Stainless Steel DIN 1.4301 (AISI 304)

Operating Characteristics


Working mechanism
Inclined screw conveyor
Inclination angle
Up to 30°
Automation level
Automatic dirt removal
Cleaning method
Integrated cleaning nozzles
Conveying material
Pomace

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Screw Diameter
400mm
Screw Length
Up to 25m
Screw Design
U–trough,completely covered
Inclination
Up to 30°
Construction Material
Stainless Steel (DIN 1.4301 / AISI 304)
Drive Unit
Gear motor and chain pulley

Custom Options


Design
Variable design,optionally equipped with outlet gates
Material
Stainless steel (DIN 1.4301 / AISI 304)
Length
Up to 25m
Screw diameter
400mm / 500mm
Screw angle
Up to 30° inclination
Cleaning
Automatic dirt removal via rinseable tray and integrated cleaning nozzles
Motor power
4–15 kW
Conveying Capacity
75m3/h (400) / 125m3/h (500) at 30°
Drive system
Gear motor and chain pulley
