Tea bag packaging solution for single-chamber bags
Achieve efficient, high-speed tea packaging with a compact system that ensures optimal product preservation and infusion quality, perfect for enhancing the production line of black and herbal tea bag manufacturers.
Packages and Seals High-Speed Tea and Herbal Bags

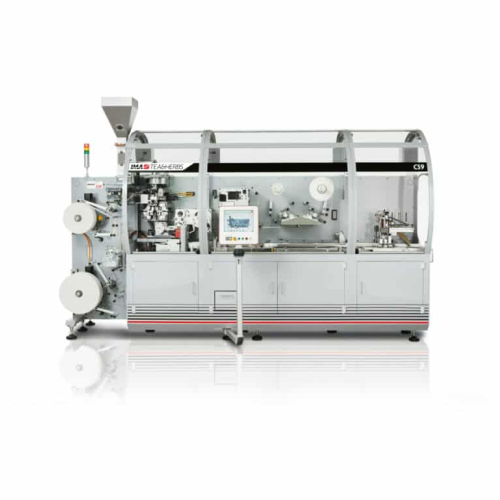

The C59 from IMA Group is a compact tea bag packaging solution engineered for high-speed, continuous operation. Specializing in heatsealed, single-chamber bags without string or tag, it integrates seamlessly into production lines by offering a full packaging process, from bag forming to flow pack sealing. Capable of processing up to 900 bags per minute, the C59 is designed for tea and herbal products, optimizing infusion through gusseted bags that allow more space for movement. Its flow pack unit maintains product freshness, while the use of sustainable packaging materials enhances eco-friendliness. The equipment boasts energy efficiency with motorized systems that regenerate power, and its compact design reduces the need for additional space. Customizable features such as automatic filter paper splicing and single-source electronic components ensure compatibility and ease of maintenance, meeting the rigorous demands of modern tea beverage production lines.
Benefits
- Increases production efficiency by seamlessly integrating bag forming and flow pack sealing.
- Ensures product freshness and extended shelf life with sustainable flow wrapping.
- Minimizes energy costs through regenerative motorization and optimized power usage.
- Enhances product quality with gusseted bags for superior infusion performance.
- Saves floor space with its compact footprint, ideal for limited production environments.
- Applications
- Herbs,Tea,Beverages
- End products
- Herbal tea bags,Black tea bags
- Steps before
- Tea and herbs sorting,Tea blending,Herb cutting,Mixing
- Steps after
- Cartoning,Case packing,Palletizing
- Input ingredients
- tea,herbs,filter paper,film for flow pack
- Output ingredients
- heatsealed single-chamber tea bags,gusseted filter bags,naked bags in heatsealed flow packs
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Machine speed
- Up to 900 bags/minute
- Teabag Capacity
- Max 3,125 grams
- Filter bag maximum volume
- 9.5 cubic centimeters
- Total installed power
- 38 kW
- Average power consumption
- 4.5 kW
- Maximum power consumption
- 8.6 kW
- Compressed air pressure
- 6 bar
- Compressed air consumption
- Up to max. 235 Nl/min.
- Machine net weight
- Max 4580 Kg
- Process control
- Full integration
- Production efficiency
- High due to integration
- Dosing mechanism
- Continuous flow doser
- Filling mechanism
- Forced filling
- Splicing units
- Automatic filter paper and film splicing units
- Electronic componentry
- Single-source for compatibility
- Automation level
- Fully Automated / PLC-Controlled
- Integrated Steps
- Bag Forming,Flow Pack Sealing
- Process Control
- Single Overall Control
- Footprint
- Extremely Compact
- Packaging Speed
- Up to 900 bags/minute
- Energy Efficiency
- Kinetic Energy Regeneration
- Changeover and Efficiency
- Reduced Changeover Time and Efficiency Loss
- Flexibility
- Handles Black Tea and Non Free-Flowing Products
- Sealing Type
- Heatsealed,Gusseted Bags
- Flow Pack Integration
- Standard Integrated Unit
- Material Compatibility
- Eco-Friendly,Sustainable Materials
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- Extremely compact footprint
- Compact footprint
- Extremely compact
- Integration possibilities
- Full integration of flow pack unit
- Discharge method
- Flow pack insertion
- Control panel type
- Single-source electronic componentry
