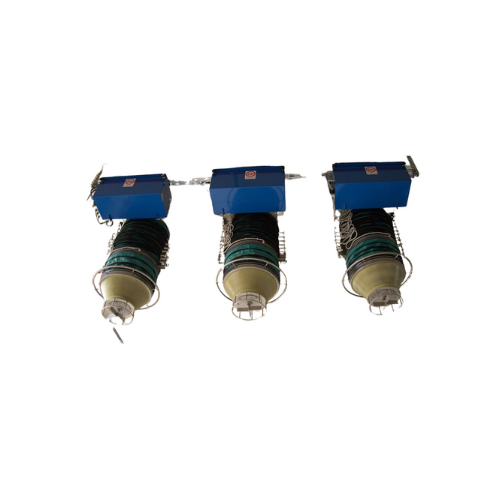

Tanker loading bellow for dust-free bulk solids loading

Optimize tanker loading while minimizing dust emissions with this advanced solution, ensuring efficient transfer of dry, dusty bulk materials without compromising air quality or material integrity.

Controls Dust and Distributes Bulk Solids Efficiently

The ZG Loading Bellows by WAMGROUP delivers efficient and dust-controlled loading of dry, dusty bulk solids into tankers. With a solid connection to a centralized filter unit, it minimizes dust and optimizes material distribution using a reverse cone and integrated level control. Used in applications from mortar mixtures and asphalt to flour and pet food, it operates at throughputs reaching up to 250 m³/h. Featuring a flexible neoprene chute coated with Hypalon, it stands up to abrasive materials and extreme temperatures (-40 to 150 °C). With options for ATEX versions and various materials, it supports automated processes with motor-driven or handle winch controls and offers seamless integration with your material handling systems.

Benefits

  • Enhances productivity by ensuring fast, dust-free loading of bulk solids.
  • Minimizes material waste with precise level control and seamless material distribution.
  • Durable construction withstands harsh environments and temperature extremes.
  • Reduces manual intervention through automated operation and remote control options.
  • Adapts to diverse industry needs with customizable materials and ATEX-certified versions.

General


Applications
Lime,Animal feed,Sugar processing,Asphalt,Pet food,Biscuit processing,Dry mix building materials,Cements,Flour milling,Gypsum,Plastics raw materials,Minerals,Rice milling,Fertilizers
End products
Biscuits,Granular fertilizers,Dog kibble,Cement powder,Asphalt aggregate,Mineral powders,Wheat flour,Hydrated lime,Milled rice,Refined sugar,Mortar mixtures,Animal feed pellets,Gypsum board,Plastic pellets
Steps before
Material Storage,Silo Loading,Material Screening
Steps after
Dust Filtration,Material Distribution,Transportation to Processing
Input ingredients
dry bulk solids,dusty materials
Output ingredients
loaded tanker,dust-free operation
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Inlet diameter
ZG = 300 mm (12 in)
ZJ = 400 mm (16 in)
Maximum throughput rate
ZG = 250 m3/h (147 cfm)
ZJ = 440 m3/h (260 cfm)
Operating temperature
-40 ~ 150 °C (-40 ~ 300 °F)
Automation
Motor-driven or with handle winch
Control panel
Control panel with remote control
Tanker connection
SINT engineering polymer-coated cone with sealing properties
Level control
Reverse cone with inside level control

Operating Characteristics


Dust control
Centralised filter unit
Level control
Inside level control device
Automation level
Slack cable and limit switches
Weather resistance
Neoprene covered with Hypalon®
Temperature resistance
-40 ~ 150 °C (-40 ~ 300 °F)
Sealing efficiency
Conical SINT polymer-coated
Anti-spillage
Anti-spillage device
Material flow
Two lifting cables outside flow

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Moderate
Density/particle size
Varied
Temperature resistance
-40 ~ 150 °C (-40 ~ 300 °F)
Weather-proof
Yes

Physical Characteristics


Chute Material
Flexible neoprene covered with Hypalon®
Weather Resistance
Yes,highly abrasion and temperature-resistant
Connection Method
Centralised dust suction flange
Lifting Mechanism
Two lifting cables outside material flow
Inlet Diameter
300 mm (12 in)
Material Distribution
Reverse cone with inside level control
Dust Control
Outer double bellows with dust removal

Custom Options


Lifting mechanism
Motor-driven / Handle winch
Anti-spillage device
Dustproof stopper
