Tablet compression module for high containment applications

Quickly switch between tablet batches without compromising safety, thanks to a unique enclosed compression module that prevents cross-contamination of potent compounds.

Compresses and Contains Pharmaceutical Tablets Safely

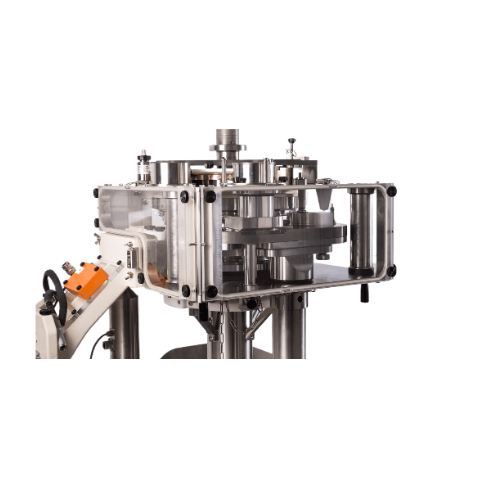

The MODUL Tablet Press from GEA features the innovative Exchangeable Compression Module (ECM), revolutionizing tablet production with a focus on safety and efficiency. The ECM is a dust-tight unit, isolated from the press, which facilitates rapid module exchange and eliminates cross-contamination risks. This makes it ideal for manufacturing pharmaceuticals like pain relief tablets and highly potent APIs, including chemotherapy drugs. The press supports continuous operation and small to medium-volume production, enhancing throughput while ensuring operator safety through high containment systems. The ECM design allows module changes in just 30 minutes, significantly boosting productivity compared to conventional systems. Available with advanced wash-off-line capabilities and corrosion-resistant materials, it supports diverse tablet types, including bi-layer configurations. The MODUL series complies with GMP standards, and its modularity supports seamless integration into production lines, offering pharmaceutical companies customizable configurations to meet specific production needs.

Benefits

  • Enhances productivity through rapid 30-minute product changeovers without cross-contamination.
  • Increases operator safety by maintaining low contamination levels, reducing reliance on air suits.
  • Minimizes downtime with exchangeable modules, allowing immediate resumption of production.
  • Supports flexible production needs, accommodating both single-layer and bi-layer tablets.
  • Provides high containment, keeping harmful compound exposure below stringent safety thresholds.

General


Applications
Bi-layer tablets,Highly potent apis,Pharmaceutical tablets
End products
Vitamin supplements,Chemotherapy drugs,Hormonal contraceptives,Antidiabetic tablets,Cardiovascular drugs,Antiviral drugs,Antidepressants,Antihistamines,Antihypertensive medication,Pain relief tablets
Steps before
Formulation,Mixing,Blending,Granulation
Steps after
Packing,Coating,Inspection,Quality Control
Input ingredients
tableting materials,active pharmaceutical ingredients,tablet formulation
Output ingredients
compressed tablets,bi-layer tablets,pharmaceutical tablets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Changeover time
30 minutes
Contamination levels
Below 10 μg/m³
Containment level for potent APIs
Below 1 μg/m³
Fast product changeover
Less than 1 hour
High containment wash-off-line
WOL
Bi-layer tablet production rate
Up to 100,000 tablets/hour
Encapsulation of all product-contact parts
Yes
Removable ECM
15 minutes
Wash-off-Line (WOL) ECM capabilities
Yes
Construction material for WOL ECM
Corrosion-resistant
Electrical components location
Outside ECM
Punch operation
1 punch at 10 to 50 tablets/minute

Operating Characteristics


Changeover time
30 minutes
Batch vs. continuous operation
Continuous
Dust protection for working environment
Dust-tight module
Cleaning method
Sealed environment cleaning
Automation level
Patented exchangeable compression module
Energy efficiency
Not specified

Material Compatibility


Corrosion resistance
Suitable for high-strength detergents
Biological compatibility
Non-potent pharmaceutical applications
Cleanability
Easy cleaning with sealed environment
High containment
Repels harmful APIs
Dust-tight sealing
Below 10 μg/m3 containment

Physical Characteristics


Footprint
Compact with modular design
Module Type
Exchangeable Compression Module (ECM)
Design Feature
Dust-tight encapsulation
Size Description
Sealed unit
Changeover Capability
Fast module exchange
Material
Corrosion-resistant
Containment
High containment capability
Punch Configuration
Contains turret and compression tooling

Custom Options


Control panel type
HMI / Touchscreen
Discharge method
Automatic / Manual
Changeover time
Fast (≈30 minutes)
