Tablet coating system
Achieve precise and uniform coating on pharmaceutical tablets with this scalable system, designed for optimal performance in high-speed, continuous operations, ensuring product integrity and compliance with stringent quality standards.
Coats Tablets with Precision

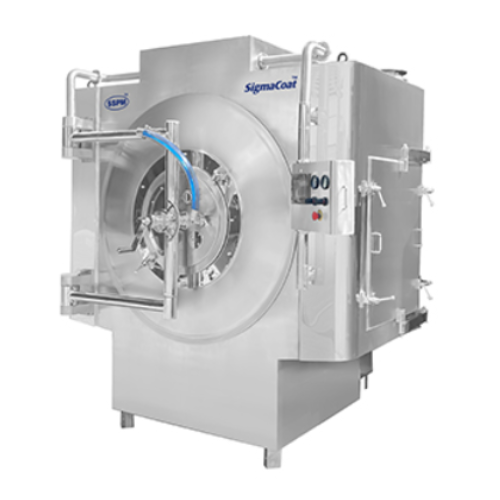

The SigmaCoat™ Tablet Coating System from SSPM is designed to tackle the intricate demands of tablet coating in pharmaceutical manufacturing. This system stands out with its perforated coating pan and anti-bearding spray nozzles, ensuring even coating application and preventing clogs. Suitable for film, enteric, and sugar coatings, it supports a wide range of end-products, including ibuprofen and multivitamin tablets. Its automation features, such as a user-friendly control system and optional 21 CFR Part 11 compliance, facilitate seamless operation. The system operates in batch, high-speed, or continuous modes and integrates an efficient air handling unit with PRE/MICRO and HEPA filters, enhancing energy efficiency. Constructed with flame-proof materials and available in various pan sizes, the SigmaCoat™ meets CGMP standards and supports easy cleaning with a wash-in-place system, ensuring compliance and maintaining high production quality.
Benefits
- Ensures consistent tablet quality with precise coating application.
- Minimizes production interruptions through clog-resistant spray nozzles.
- Enhances compliance with GMP and 21 CFR Part 11 standards.
- Promotes safety with flame-proof construction and advanced air filtration.
- Streamlines cleaning processes with an efficient wash-in-place system.
- Applications
- Coating materials,Pharmaceutical tablets
- End products
- Ibuprofen tablets,Antihistamine tablets,Antidepressant tablets,Enteric-coated tablets,Antacid tablets,Sugar-coated tablets,Film-coated antibiotics,Multivitamin tablets,Aspirin tablets,Paracetamol tablets
- Steps before
- Granulation,Sizing,Milling,Material Handling,Sifting
- Steps after
- Tablet Pressing,Packaging,Quality Control,Sterilization
- Input ingredients
- film coating solutions,enteric coating solutions,sugar coating solutions
- Output ingredients
- coated tablets,film-coated tablets,enteric-coated tablets,sugar-coated tablets
- Market info
- Pan Diameter
- 305 mm to 1830 mm
- Pan Mouth Opening
- 175 mm to 600 mm
- Brim Volume
- 1.4 L to 150 L
- Optimum Batch Capacity
- 15 kg to 150 kg
- Pan Motor
- 0.5 HP to 15 HP
- Process Air Volume (Inlet)
- 825 CFM to 7000 CFM
- Process Air Volume (Outlet)
- 900 CFM to 8000 CFM
- Coating Types
- Film,Enteric,Sugar
- Automation
- User-friendly control system
- Compliance
- 21 CFR PART 11
- Spray Nozzle Type
- Anti-bearding
- Pan Type
- Perforated
- Temperature Measurement
- Infrared sensor
- Cleaning Method
- Wash-in-place system
- Automation level
- PLC / Touchscreen Control
- Batch vs. continuous operation
- Batch
- CIP/SIP
- Wash-in-place system
- Cleaning method
- WIP / Manual
- Process air control
- Automatic adjustment
- Abrasion resistance
- High
- Biological compatibility
- Pharmaceutical grade
- Cleanability
- CIP/SIP capable
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Density/particle size
- 0.5–1.5 g/cm³ / 50–1000 µm
- Coating applications
- Film,enteric,sugar coating
- Containment coating solution
- R,D Coaters
- Control panel type
- User-friendly touch control system
- Machine size (Pan Diameter)
- 305–1830 mm
- Pan Mouth Opening
- 175–600 mm
- Discharge method
- Auto-discharge facility
- Control panel type
- User-friendly control system
- Pan size
- Interchangeable pan facility
- Spray nozzle alignment
- 3-level adjustment
- Compliance
- 21 CFR PART 11 Compliance
- Cleaning system
- Wash-in-place system
