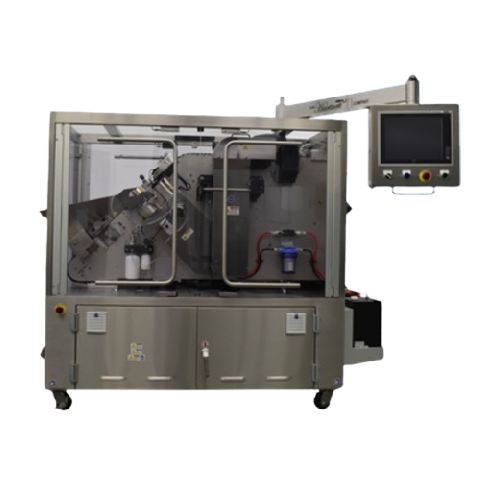

Tablet and capsule ink print and laser marking system

Streamline tablet and capsule identification with a high-speed system capable of dual ink printing and precise laser marking on diverse pill formats, enhancing traceability and compliance in your production line.

Prints and Marks Tablets and Capsules

The Delta Combination Ink Print and Laser Writer from RW Hartnett Company combines precision engineering with versatility to address the needs of pharmaceutical and nutraceutical manufacturers. This equipment specializes in dual-sided ink printing and laser marking, catering to a wide range of product types like tablets, soft gelatin capsules, and caplets. It features a robust output of 50,000 to 70,000 pieces per hour, driven by its servo drive system for accurate print registration and consistent performance.

The machine’s adjustable hopper maximizes fill rates, while the quick-change tooling supports smooth and efficient production line transitions. Its 15-inch touchscreen HMI with Wi-Fi connectivity simplifies operations and allows for real-time monitoring. Meeting the stringent standards of 21 CFR Part 11 along with CE and UL certifications, it ensures compliance in highly regulated environments.

For enhanced quality control, an optional vision inspection system offers single-piece rejection to maintain product quality. The machine’s design supports seamless integration into existing production lines and offers compatibility with both processing and packaging departments. Additional features like the ink viscosity system and rubber roll cleaning system reduce maintenance downtime, while available validation document packages facilitate regulatory compliance for contract manufacturing organizations (CMOs).

Benefits

  • Increases production efficiency with high throughput of up to 70,000 units per hour.
  • Enhances brand compliance through precise, dual-sided printing and marking.
  • Simplifies operation and monitoring with an intuitive touchscreen interface and remote connectivity.
  • Ensures regulatory compliance with 21 CFR Part 11, CE, and UL certifications.
  • Minimizes transition times with quick-change tooling and adjustable components.

General


Applications
Supplements,Pharmaceutical tablets,Caplets,Nutraceuticals,Soft gelatin capsules,Hard gelatin capsules
End products
Ibuprofen tablets,Omega-3 softgel capsules,Vitamin d caplets,Collagen supplements,Herbal supplement tablets,Calcium supplements,Probiotic hard gelatin capsules,Multivitamin softgel capsules,Glucosamine caplets,Aspirin tablets
Steps before
Tablet Production,Capsule Filling,Caplet Molding
Steps after
Vision Inspection,Batch Recording,Quality Assurance,Packaging
Input ingredients
tablet,soft gelatin capsule,caplet,2-piece hard gelatin capsule
Output ingredients
ink printed tablet,laser marked tablet,ink printed capsule,laser marked capsule
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Output
50,000 to 70,000 pieces per hour
Electrical
240 VAC / 30amp/ 3 phase
Air
90 psi @ 5 scfm
Ink Printing Capability
Single or two-sided
Laser Marking Capability
Single or two-sided
Drive system
Servo drive system
Touchscreen
Swingarm 15” touchscreen HMI
Connectivity
Wi-Fi connectivity
Compliance
21 CFR Part 11 Compliant
Certification
CE and UL certified

Operating Characteristics


Working Mechanism
Ink Print / Laser Marking
Output Rate
50,000 to 70,000 pieces per hour
Marking Capability
Single or Two-Sided
Quick Change Tooling
Yes
Automation Level
PLC-controlled
Batch Recording
Auto recording

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine output capacity
50,000 to 70,000 pieces per hour
Control panel type
Swingarm 15” touchscreen HMI
Machine footprint
Not specified
Hopper type
Adjustable quick-change hopper
Print and laser station count
Two servo-driven print stations and two laser stations

Custom Options


Control panel type
Swingarm 15” touchscreen HMI
Wi-Fi connectivity
Yes
Batch recording
Yes
Quick change tooling
Yes
Vision inspection system
Optional
Ink Viscosity System
Optional
Rubber Roll Cleaning System
Optional
Validation document packages
Available
