Table-top bottom loading furnace with stirring capability

Achieve precise thermal processing with controlled heating and optional stirring, ideal for creating consistent, high-quality materials in research, metal processing, and ceramics.

Heats and Controls Temperature for Material Processing

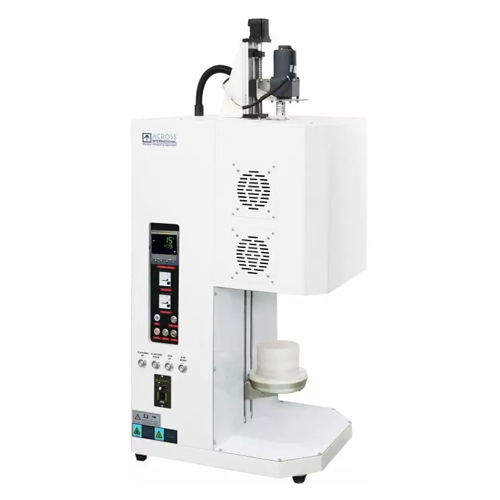

The BLF1700 from Across International is a motorized, table-top bottom loading furnace designed for demanding thermal applications needing precise control. Utilizing Molybdenum Silicide (MoSi2) Type 1800 heating elements, it achieves temperatures up to 1700°C, ideal for processing ceramics, metal alloys, and synthetic diamond materials. With a Eurotherm multi-segment PID controller, it ensures an optimum thermal process, minimizing overshoot. The motorized bottom elevator hearth enhances operational ease, while optional stirring facilitates improved material uniformity. Designed with high-quality Mitsubishi alumina fiber insulation, it reduces heat loss, ensuring energy efficiency. This furnace is suited for research and development, industrial, and educational settings, providing reliable temperature control crucial for metallurgy and material science.

Benefits

  • Enhances operational precision with motorized controls and accurate temperature management.
  • Minimizes energy consumption through high-quality alumina fiber insulation.
  • Increases material uniformity with optional stirring capabilities.
  • Ensures safety with overheat and power failure protections.
  • Facilitates integration into research and industrial environments with compact, table-top design.

General


Applications
Ceramics,Material science,Laboratory equipment,Industrial applications,Metal processing
End products
Synthetic diamond materials,Catalytic converters,Laboratory crucibles,Metal alloys,Porcelain wares
Steps before
Sample Preparation,Material Loading,Pre-heating
Steps after
Cooling,Handling,Data Logging
Input ingredients
Output ingredients
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Max. working temperature
1700°C
Max. constant working temperature
1600°C
Heating element type
Molybdenum Silicide (MoSi2) Type 1800
Thermocouple type
Type B
Temperature controller
Eurotherm 3204 Controller
Max heating rate
< 30°C / min
Recommended heating rate
15°C / min
Furnace housing temperature
< 45°C
Power
5 kW / 7 kW
Electrical requirements
208-240VAC,50/60Hz,single phase
Chamber size (diameter x height)
6x8" / 8x8"
Chamber capacity
0.13 cu ft / 0.23 cu ft
Bottom elevator hearth
Motorized

Operating Characteristics


Working Mechanism
Motorized Bottom Loading
Automation Level
Eurotherm PID Control
Safety Features
Overheat and Power Failure Protection
Optional Features
Overhead Stirring Function
Batch vs. Continuous Operation
Batch

Material Compatibility


High Temperature Tolerance
Up to 1700°C
Thermal Shock Resistance
High

Physical Characteristics


Machine footprint
27.5x31.5x47"
Machine footprint
29.5x33.5x47"
Chamber size
6x8" (ID x H)
Chamber size
8x8" (ID x H)
Chamber capacity
0.13 cu ft
Chamber capacity
0.23 cu ft
Heating element type
Molybdenum Silicide (MoSi2) Type 1800

Custom Options


Control panel type
Eurotherm with PID control
Integration possibilities
Built-in computer interface
Overhead stirring system
Optional
