Surge hoppers for efficient batch mixing

Streamline your production with surge hoppers engineered to reduce batch cycle times and enhance cleanout efficiency, ensuring seamless integration into your existing mixing operations.

Enhances Mixing and Reduces Batch Cycle Times

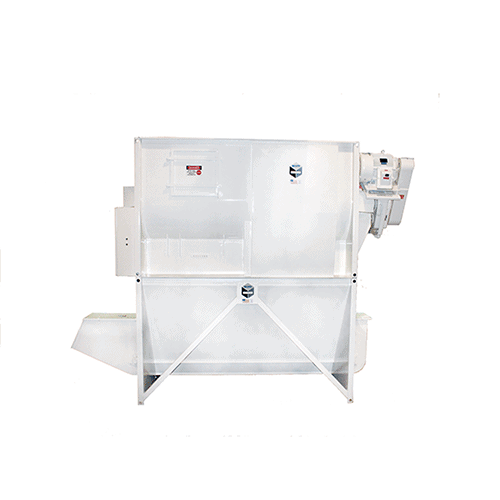

The Scott Equipment Surge Hopper seamlessly integrates with heavy-duty horizontal mixers to optimize batch processing for animal feed, pet food, cement, and food manufacturing industries. Equipped with custom-designed conveyor extensions, it allows for flexible discharge options with paddle drag or screw conveyors, supporting inclines up to 45 degrees. Each hopper holds a complete batch, enhancing production flow and facilitating swift cleanout. With batch cycle times as low as 90 seconds, the system streamlines both batch and continuous operations efficiently. Built with durable materials and available with UHMW liners, it promises long-lasting performance and minimal maintenance requirements.

Benefits

  • Reduces batch cycle time to as low as 90 seconds, increasing overall production efficiency.
  • Customizable discharge options enhance adaptability to different production setups.
  • Minimizes labor with efficient cleanout design, maximizing operational uptime.
  • Accommodates high-speed operations for consistent production flow.
  • Built with durable materials to withstand demanding industrial environments, reducing maintenance frequency.

General


Applications
Animal feed,Pet food,Foodstuffs,Vtm,Premix,Cement dry mix
End products
Cat food kibble,Bread mix,Vitamin pre-mixes,Cattle feed pellets,Trace mineral mixes,Mortar mix
Steps before
Batch Mixing,Ingredient Weighing,Material Conveyance
Steps after
Cleanout,Discharge,Packaging
Input ingredients
animal nutrition,pet food,premix,VTM,foodstuffs,cement dry mix
Output ingredients
animal nutrition blend,pet food mix,premix formulation,VTM blend,processed foodstuffs,cement dry mix product
Market info
Scott Equipment is known for its expertise in custom-designed industrial mixing and processing equipment, catering to diverse industries with a strong reputation for quality, innovation, and customer-focused engineered-to-order solutions.

Technical Specifications


Batch cycle time
as low as 90 seconds
Incline angle
up to 45 degrees
Conveyor type
Paddle drag conveyor / Screw conveyor
Conveyor customization
Custom-designed for specific applications
UHMW liners availability
Available
Cleanout efficiency
Fast and efficient
Surge hopper capacity
Holds the complete batch
Drop bottom gate
Available

Operating Characteristics


Batch vs. continuous operation
Batch
Cleaning method
Manual / Efficient cleanout
Automation level
Custom Automation / PLC
Changeover time
90 seconds
Incline Capability
Up to 45 degrees with curved section
Integration with Conveyors
Paddle drag conveyor / Screw conveyor

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Custom size based on application
Conveyor Type
Paddle drag conveyor / Screw conveyor
Conveyor Incline
Up to 45 degrees
Hopper Capacity
Holds complete batch from mixer
Discharge Method
Paddle drag conveyor / Screw conveyor
Liners
Available with UHMW liners

Custom Options


Conveyor type
Paddle drag / Screw conveyor
Custom designed conveyor extension
Yes
Curved section for inclines
Up to 45 degrees
