Sugar reduction skid for fresh juice

Transform the way you produce juice with enzymatic technology that reduces sugar content by up to 80%, turning sugars into dietary fibers and non-digestible sugars while maintaining the drink’s texture and nutritional value.

Reduces Sugar Content in Fruit Juices

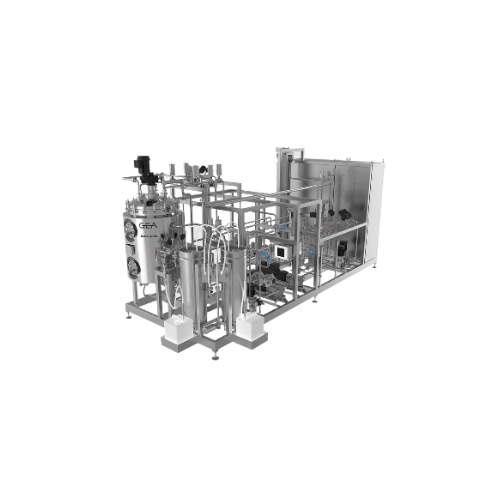

The GEA Better Juice Sugar Converter Skid is an enzyme reactor skid designed to transform the sugar landscape in fruit juice production. Utilizing an enzymatic conversion process, this system reduces sugar content by up to 80%, converting unwanted sugars into beneficial dietary fibers and non-digestible sugars without affecting the juice’s nutritional profile or texture.

Ideal for juice manufacturers and beverage producers, the skid seamlessly integrates into existing production lines, handling continuous, automated operations for commercial-scale output. The system is engineered for extended runs—up to 72 hours for NFC juice and a week for juice concentrates—before requiring cleaning, supported by its hygienic design and CIP capabilities.

The skid delivers flexibility in reducing sugars across various fruit juices and beverages, enabling innovative product formulations like low-calorie soft drinks and sugar-free confections. Featuring an optimized, PLC-controlled system, it offers straightforward integration and operation control, enhancing efficiency without the need for additional ingredients or fermentation steps.

Benefits

  • Enables the creation of lower-calorie juice products, meeting consumer demand for healthier options.
  • Reduces production costs by minimizing the need for additional raw materials in sugar reduction processes.
  • Enhances product portfolio with versatile applications from juices to sugar-free confectionery.
  • Prolongs continuous operation, minimizing production line interruptions and increasing overall efficiency.
  • Supports sustainable production practices without compromising product quality or safety.

General


Applications
Beverages,Confectionery,Fruit juices
End products
Sugar-free candy,Low-sugar orange juice,Sugar-reduced tropical juice blend,Diet chocolate bars,Low-calorie soft drinks,Diet fruit beverages,Reduced-calorie apple juice,Low-sugar gummies
Steps before
Juice Extraction,Juice Pasteurization,Blending
Steps after
Sterilization,Packaging,Labeling
Input ingredients
juice,juice concentrate,NFC juice
Output ingredients
reduced sugar juice,dietary fibers,non-digestible sugars
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Sugar Reduction
Up to 80%
Automation
Fully automated system
Process Type
Continuous-flow system
Run Duration on NFC Juice
Up to 72 hours
Run Duration on Juice Concentrate
Up to one week
Height
2,200 mm
Width
1,400–2,500 mm
Length
3,500–10,000 mm
Installed Electrical Power
16–123 kW
Weight
1,600–2,800 kg
Process Connection
DN10–25
Capacity
200–3,000 l/h

Operating Characteristics


Working Mechanism
Continuous-flow system
Automation Level
Fully automated system
Operation Duration
Up to 72 hours on NFC juice
Operation Duration
Up to one week on juice concentrate
CIP/SIP Requirement
Cleaning/sterilization cycle required
Integration Capability
Standalone or integrated into production line
PH Control
pH control for optimal reactor system performance

Material Compatibility


Biological compatibility
Suitable for food processing
Cleanability
Designed for CIP/SIP
Corrosive resistance
High resistance to acids and enzymes
Density/particle size
Optimized for juice liquids

Product type Characteristics


Heat Sensitivity
High heat sensitivity due to enzymatic activity
Viscosity
Suitable for low to medium viscosity liquids
Enzyme Stability
Stable in specific pH range
Fermentation-Free Processing
Designed for non-fermented juice products
Container Size and Shape
Adaptable to various liquid processing setups

Physical Characteristics


Machine footprint
203,500 mm x 1,400 mm x 2,200 mm
Machine footprint
2005,500 mm x 2,000 mm x 2,200 mm
Machine footprint
5,000 mm x 2,500 mm x 2,500 mm
Machine footprint
2,500 mm x 2,500 mm x 2,500 mm

Custom Options


Sugar Reduction Level
Up to 80% adjustable
Integration Possibilities
Standalone or integrated into existing juice production line
Automation Level
Fully automated system
Continuous Operation Duration
Up to 72 hours on NFC juice,up to one week on juice concentrate
PH Control
Yes,for optimal reactor system performance
