Strand pelletizer for small production lines

Achieve consistent and precise pellet sizes with our strand pelletizer, ideal for transforming polymers into uniform granules while maintaining seamless integration into both lab-scale and small production environments.

Pelletizes Polymers for Consistent Granule Production

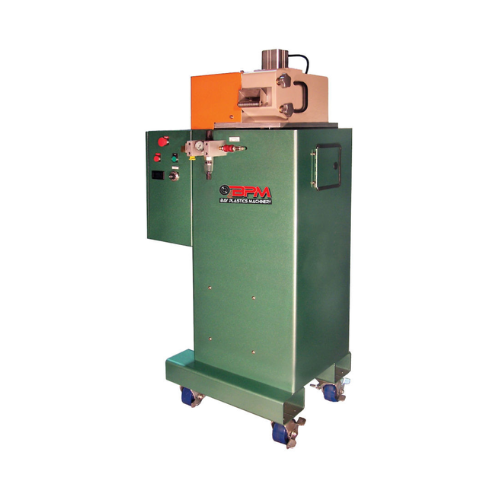

The SB 100 & SB 50 Series Pelletizers from Bay Plastics Machinery are engineered for precision pelletizing in plastics and polymer production environments. Designed for continuous and reliable operation, these strand pelletizers seamlessly handle thermoplastics, resins, and additives, ensuring uniform pellets for consistent processing. With its innovative push-pull adjustment, the equipment maintains precise control over pellet length using a four-edged tungsten carbide bed knife and stellite-tipped rotor. The easy-access design and safety interlock system meet all OSHA standards, ensuring secure and efficient use. The series caters to both laboratory and small-scale production needs, featuring aluminum and stainless steel construction for enhanced durability. It offers simple integration into existing lines with a feed table assembly and AC variable frequency drive for optimized operation. Bay Plastics Machinery supports the SB Series with extensive customization options and technical assistance, making it an adaptable choice for continuous processing challenges.

Benefits

  • Ensures uniform pellet size for high-quality end products.
  • Enhances safety with an interlock system meeting OSHA standards.
  • Saves maintenance time with tool-free access to the cutting chamber.
  • Increases versatility for lab and production applications.
  • Precisely controls cutting with adjustable bed knife gap.

General


Applications
Polymers,Synthetic materials,Masterbatch,Compounds,Additives,Plastics,Resins,Thermoplastics,Rubber
End products
Masterbatch particles,Thermoplastic beads,Polymer granules,Resin pellets,Synthetic fiber pellets,Additive pellets,Rubber granules,Plastic pellets,Compounded pellets
Steps before
Material Feeding,Strand Formation,Heating
Steps after
Pellet Cooling,Pellet Conveying,Pellet Packaging
Input ingredients
plastic strands,polymer strands
Output ingredients
plastic pellets,polymer pellets
Market info
Bay Plastics Machinery is known for manufacturing pelletizing equipment and systems, recognized for their innovation and quality in the plastics industry. They specialize in developing customized solutions for polymer processing, focusing on efficiency and reliability.

Technical Specifications


Bed Knife Adjustment
Push-Pull system
Bearings
Eccentric mounted
Bed Knife Material
Solid tungsten-carbide
Rotor Tip Material
Stellite-tipped
Feedroll Material
Diamond-knurled lower feedroll
Feedroll Covering
Hypalon-covered upper feedroll
Drive Type
AC variable frequency drive
Cutting Chamber Material
Stainless steel
Cover Assembly Material
Aluminum
Pneumatic Cylinder Bore
2 1/2”

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual
Cleaning method
Manual
Safety Interlock
Prevents operation without intake chute correctly in place
Adjustable Rotor to Bed Knife Distance
Push/Pull system
Cutting Uniformity
Uniform pellet lengths
Cleaning Accessibility
Easy removal of intake and discharge chutes

Material Compatibility


Cleanability
Easy to clean

Product type Characteristics


Pellet size
Customizable/Standard

Physical Characteristics


Machine footprint
Designed for larger lab or small production line
Feed method
Removable feed table assembly
Discharge method
Removable Discharge Chute
Control panel type
AC variable frequency drive
Safety features
Safety interlock system
Material of construction
Stainless steel cutting chamber and aluminum cover assembly
Knife adjustment
Push-Pull bed knife adjustment
Feedroll design
Hypalon-covered upper feedroll
Feedroll type
Diamond-knurled lower feedroll
Bearings
Eccentric mounted for lower feed roll gap control
Rotor
Stellite-tipped
Bed Knife Material
Solid tungsten-carbide
Cylinder type
Large 2 1/2” bore pneumatic cylinder
Opening mechanism
No tools required to open the exterior cutting chamber cover

Custom Options


Control panel type
Variable frequency drive
Discharge method
Removable discharge chute
Infeed chute design
Easily removable
Feedroll customization
Diamond-knurled lower feedroll
Bed knife adjustment
Push-Pull system
Material of construction
Stainless steel cutting chamber,Aluminum cover assembly
