Sterility test isolator for injectables and sterile powders

Ensure sterility and compliance for injectables and biopharmaceuticals with precision testing and bio-decontamination, safeguarding quality and efficacy of critical drug formulations.

Performs Sterility Testing and Bio-Decontamination

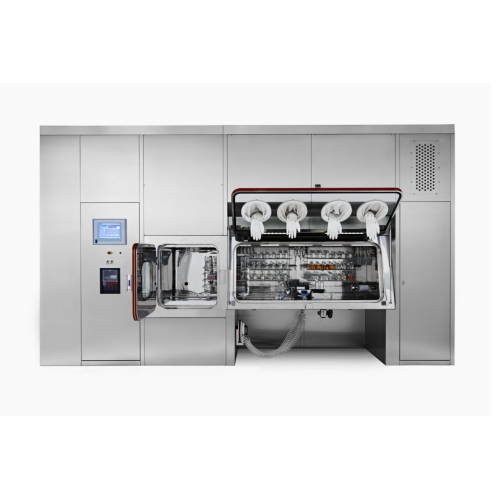

The FCTS Sterility Test Isolator from Fedegari is an essential piece of equipment for pharmaceutical and biopharmaceutical manufacturers. Designed for precise sterility testing and effective bio-decontamination, it is ideal for handling injectable liquids, ophthalmic ointments, sterile antibiotic powders, and freeze-dried drugs. The FCTS employs H2O2 vapor phase technology, ensuring consistent biocide concentration levels within ± 15 ppm, which guarantees process repeatability and reliability.

This isolator operates under stringent cGMP guidelines and achieves ISO 5 FDA and Class A EU GMP classifications. Applications range from vaccine production to monoclonal antibodies, ensuring high integrity and compliance. Its modular design allows for custom configurations, including adjustable internal storage and racks. The integration with Fedegari’s Thema4 system facilitates seamless automation and compatibility with SCADA systems, reducing validation time and enhancing operational efficiency. The isolator is crafted with non-directional BA surfaces and features airtight doors with silicone inflatable gaskets for 100% air-tight operation. Made from robust stainless steel, it offers corrosion resistance and includes an internal trolley for material handling, promoting continuous loading operations.

Benefits

  • Reduces operational costs with non-proprietary consumables.
  • Enhances process reliability with real-time H2O2 concentration monitoring.
  • Simplifies compliance with stringent cGMP guidelines and ISO 5 classification.
  • Boosts equipment integration with seamless connection to SCADA systems via Thema4.
  • Minimizes downtime with rapid material transfer and adaptable internal configuration.

General


Applications
Ophthalmic ointments,Injectable liquids,Biopharmaceuticals,Freeze-dried drugs,Sterile antibiotic powders
End products
Vaccines,Hormone therapies,Sterile antibiotic vials,Insulin formulations,Lyophilized cancer drugs,Monoclonal antibodies,Eye drops
Steps before
Purification,Filling,Formulation
Steps after
Sterility Testing,Bio-decontamination,Packaging
Input ingredients
injectable liquids,ophthalmic ointments,sterile antibiotic powders,freeze-dried drugs
Output ingredients
sterility tested injectable liquids,sterility tested ophthalmic ointments,sterility tested sterile antibiotic powders,sterility tested freeze-dried drugs
Market info
Fedegari is known for manufacturing high-quality sterilization and contamination control equipment for the pharmaceutical and biotech industries, offering engineered-to-order solutions with a strong reputation for innovation, reliability, and customer support.

Technical Specifications


Automation
Thema4 / SCADA integration
Bio-decontamination Method
H2O2 Vapor
Air Tightness
100% with silicon inflatable gasket
Surface Finish
Non-directional BA,Ra ≤ 0.4 μm
Chamber Construction
Stainless steel
Process Control
Thema4 with real-time biocide concentration control
Modularity
Customizable number of chambers and glove positions
Compliance Level
ISO 5 FDA / Class A EU GMP

Operating Characteristics


Bio-decontamination
H₂O₂ vaporization
Process control
Real-time biocide concentration
Automation level
Thema4 PLC/SCADA Integrated
Batch vs. continuous operation
Batch
Cleaning method
Bio-decontamination
Air tightness
100% guaranteed by ultra-safe doors
Customization
Modular
Customizable internal storage
Integration capability
Fedegari machines and SCADA systems
Cost-efficiency
Reduces operational costs

Material Compatibility


Biological compatibility
Compliant with cGMP guidelines
Cleanability
100% air tightness with silicon inflatable gaskets
Corrosive resistance (e.g. acids)
Stainless steel

Product type Characteristics


Suitable for
Injectable liquids,Ophthalmic ointments,Sterile antibiotic powders,Freeze-dried drugs


FDA compliance
Yes
GMP compliance
Yes,cGMP guidelines
ISO classification
ISO 5
European directives
2014/30/EU,2014/35/EU,2006/95/EC
European standards
EN 55011,EN IEC 61000-4-2,EN IEC 61000-4-4,EN IEC 60204-1
Class A EU GMP
Yes
21 CFR Part 210,211 e 11
Yes
UL 508A
Yes
NFPA-79
Yes
ASME BPE
Yes
NFPA 70 – National electrical code
Optional
UL 61010-1
Optional

Physical Characteristics


Discharge method
RTP Port for loading and unloading
Machine footprint
Modular configuration
Internal storage
Customizable storage and racks
Material transfer
Internal stainless steel trolley
Air-tightness
100% guaranteed by ultra-safe doors
Surface finishing
Non-directional BA surface finishing (Ra ≤ 0.4 μm)

Custom Options


Working chamber surface finish
Non-directional BA,Ra ≤ 0.4 μm
Pass-box positioning
Customizable
Number of working chambers
Customizable
Gloves configuration
Customizable
Internal storage and racks
Customizable according to customer needs
Integration
Easy integration with SCADA and other Fedegari machines via Thema4
Control system
Thema4
Trolley for material transfer
Stainless steel,integral for continuous loading
