Sterile inline dispersers for pharmaceutical production

Optimize sterile production environments with precision-engineered inline dispersers that ensure unparalleled particle distribution and droplet size, crucial for maintaining safety and quality in pharmaceuticals and cosmetics manufacturing.

Disperses and Homogenizes in Sterile Conditions

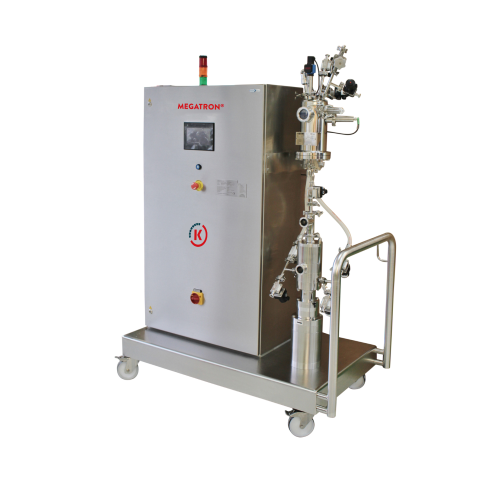

The MEGATRON® MT-SV Series from Kinematica AG is a specialized inline disperser designed for sterile environments, offering precision in dispersing, emulsification, and homogenization processes. Engineered with high-grade stainless steel and electropolished surfaces, it minimizes contamination risks and meets strict cleanroom standards such as CIP and SIP cleaning capabilities. Ideal for pharmaceutical, cosmetic, food, and life science applications, it ensures fine particle and droplet distribution with customizable rotor/stator stages ranging from coarse to superfine. With a throughput capacity of up to 25,000 liters per hour, this unit integrates seamlessly into continuous, high-speed production lines, facilitating sterile operations. The water-cooled, wear-free AC motor and comprehensive process control systems enhance its efficiency and reliability. Certified compliant with international standards and offering material certificates on request, the MEGATRON® MT-SV Series addresses the critical need for sterile manufacturing while providing robust engineering support for integration and customization.

Benefits

  • Ensures product sterility with certified cleanroom compliance and CIP/SIP capabilities.
  • Optimizes particle distribution, enhancing end-product quality in emulsions and suspensions.
  • Increases production efficiency with a high throughput of up to 25,000 liters per hour.
  • Minimizes maintenance with a wear-free, water-cooled motor and robust sealing systems.
  • Customizable to meet specific process requirements, enabling seamless production integration.

General


Applications
Food,Suspensions,Cosmetics,Emulsions,Life sciences,Pharmaceuticals
End products
Steps before
Purification,Drying,Grinding
Steps after
Sterilization,Packing,Coating
Input ingredients
pharmaceutical ingredients,cosmetic raw materials,food ingredients,life science materials,water
Output ingredients
emulsions,suspensions,fine particle distribution,tiny particle sizes,droplet sizes
Market info

Technical Specifications


Rotor Diameter
45 – 160 mm
Max Throughput
1000 – 25 000 l/h (Water)
Circumferential Speed
25 m/s
Speed Range
3000 – 10 600 rpm
Motor Power
4.0 – 37.0 kW
Motor Type
Wear-free,water-cooled high-frequency AC motor
Working Chamber Design
Vertical production chamber free of dead spaces
Seal Type
Shaft seal with double mechanical seals
Material
1.4435 / 1.4404 / 316L stainless steel
Surface Finish
Electropolished,≤ 0.8 Ra or ≤ 0.5 Ra
Cleanroom Compatibility
Various cleanroom classes

Operating Characteristics


Working Mechanism
Rotor/Stator Dispersing
Batch vs. Inline Flow
Inline Continuous
CIP/SIP
CIP / SIP Capable
Automation Level
Customizable Controls
Integration
Seamless Integration into Production System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Control panel type
Custom controls available
Integration possibilities
Custom integrations with existing production systems
Rotor/Stator combination
Coarse to superfine,various geometries
