Steam chambers for grain expansion in steam-flaking
Ensure precise grain expansion with steam chambers, designed for uniform steam distribution and optimal conditioning in steam-flaking operations.
Enhances Grain Conditioning and Expansion

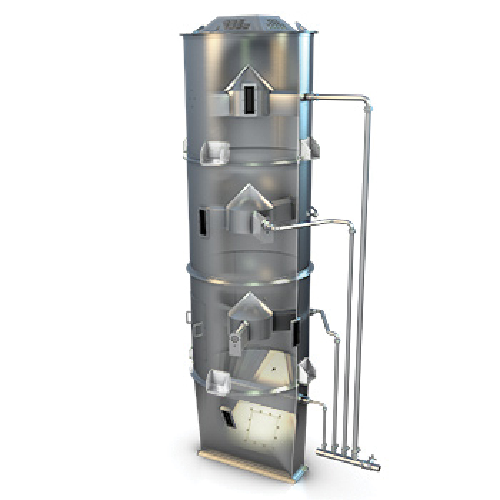

Roskamp’s industrial steam chambers are engineered for high-efficiency grain conditioning, utilizing a unique steam inlet design to ensure consistent, low-velocity steam infusion. These chambers feature a vertical, inversely tapered design for optimal grain expansion, supporting high-volume operations in sectors like animal feed and biomass production. Built from 12-gauge stainless steel, they offer exceptional durability and corrosion resistance. With multilevel steaming ports and all external piping, they maintain precise steam control. Available in customizable heights and diameters, they integrate seamlessly into existing process lines and are fitted with tempered sight glass inspection windows for easy monitoring. Optional digital temperature probes and height extensions enhance operational flexibility.
Benefits
- Ensures uniform grain conditioning, enhancing end-product quality and consistency.
- Adapts to custom space requirements, optimizing factory floor utilization.
- Minimizes steam loss with external piping, improving energy efficiency.
- Reduces inspection time with easy-access tempered sight glass windows.
- Supports high-volume operations, maximizing production capacity.
- Applications
- Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
- End products
- Hemp fiber,Cornflakes,Wood pellets,Hops pellets,Tallow,Ethanol fuel,Fish feed,Cat food,Breakfast cereals,Soybean meal
- Steps before
- Grain cleaning,Particle size reduction,Moisture conditioning
- Steps after
- Steam flaking,Cooling,Pelletizing
- Input ingredients
- raw grain,unprocessed grain
- Output ingredients
- steam-flaked grain,conditioned grain
- Market info
- CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.
- Material
- 12-gauge stainless steel
- Steam inlet design
- Uniform flow,low-velocity,high-volume
- Height and diameter
- Customizable
- Steam manifold
- Included
- Sight glass
- Tempered
- Inspection doors
- Cleanout
- Optional height extensions
- 5-foot
- Temperature probes
- Digital with LED readout
- Steam distribution
- Uniform flow
- Steam pressure control
- Precise steam control
- Steam addition
- Low-velocity,high-volume
- Interior design
- Obstruction-free
- Height customization
- 5-foot height extensions
- Inspection capability
- Sight glass windows
- Cleanability
- Cleanout doors
- Temperature monitoring
- Digital temperature probes
- Flow flexibility
- Flexible flow design
- Grain expansion
- Vertical,inversely tapered design
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material
- 12-gauge stainless steel
- Steam inlet design
- Stainless steel steam inlets
- Design type
- Vertical,inversely tapered
- Interior finish
- Smooth,obstruction-free
- Shape
- Inversely tapered
- Height extensions
- 5-foot optional
- Sight glass
- Tempered inspection windows
- Diameter range
- Custom sizes available
- Height Extensions
- 5-foot
- Material
- 12-gauge stainless steel
- Steam Control
- Stainless Steel Steam Inlets
- Temperature Probes
- Digital with LED Readout
- Inspection Features
- Sight Glass Windows
- Cleanout Doors
- For Inspection and Cleaning
- Inlet Design
- Steam Hood
