Static nutsche filters for liquid-solid separation
Achieve efficient separation of solids from liquids with precise control. This equipment is ideal for handling sensitive compounds where maintaining product integrity during filtration is crucial, ensuring a high level of consistency and quality in your end products.
Filters and Separates Solids from Liquids

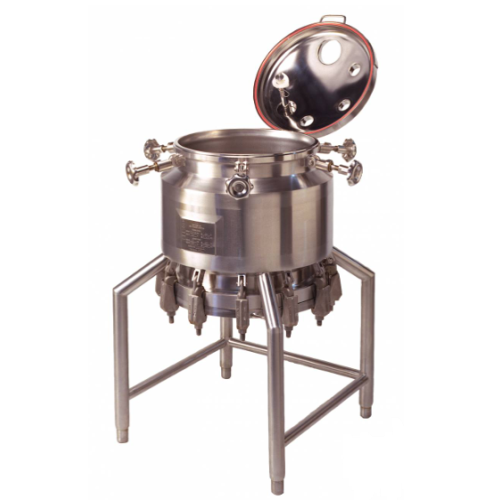

Static Nutsche Filters from De Dietrich Process Systems are meticulously engineered for liquid-solid separation in pharmaceuticals and fine chemicals. Operating on a batch process, they use a robust filtration media at the base for high-throughput separation of slurries, yielding pure solids such as APIs and specialty polymers. These filters are suitable for vacuum or pressure applications ensuring reliability across critical reactions. Crafted from materials like QVF glass and Hastelloy, they offer excellent corrosion resistance, vital for handling sensitive compounds. The filters support compliance with GMP standards, making them ideal for regulated industries. Integration into production lines is seamless, with options for automation and remote monitoring. Customization is available to meet specific process requirements, and engineering support ensures optimal configuration to match your production needs.
Benefits
- Enhances product purity through efficient solid-liquid separation.
- Minimizes operational downtime with batch processing capability.
- Supports chemical compatibility with corrosion-resistant material options.
- Ensures regulatory compliance with GMP standards.
- Offers flexible integration with customizable configurations for varying production needs.
- Applications
- Specialty chemicals,Bio-pharmaceuticals,Fine chemicals,Pharmaceuticals
- End products
- Vaccine adjuvants,Active pharmaceutical ingredients (apis),Insulin,Liquid crystal intermediates,Chemotherapy drugs,Antibody-drug conjugates,Enzyme solutions,Vitamin c crystals,Ibuprofen granules,Nutraceutical extracts,Organic pigments,Specialty polymers
- Steps before
- Purification,Grinding,Emulsification
- Steps after
- Drying,Packing,Sterilization
- Input ingredients
- slurry,liquid-solid mixtures
- Output ingredients
- separated solids,crystals,mother liquor
- Market info
- De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.
- Material
- Glass,De Dietrich glass-lined steel,stainless steel,hastelloy
- Filtration Media
- At the bottom of the vessel
- Applicable Industries
- Pharmaceuticals and Fine chemicals
- Pressure Application
- Vacuum or pressure suitable
- Function
- Static Liquid-Solid Separation
- Working Mechanism
- Static liquid-solid separation
- Filtration Method
- Büchner filter principle
- Operation Type
- Batch
- Pressure Application
- Suitable for vacuum or pressure
- Material Loading
- Slurry with solids separation
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Chemical compatibility
- Stainless steel,hastelloy,glass-lined steel
- Filter Media Type
- QVF Glass,De Dietrich Glass-Lined Steel,Stainless Steel,Hastelloy
- Vessel Shape
- Tank
- Filter Bottom
- Yes,with filtration media
- Footprint
- Compact for industrial applications
- Discharge Method
- Vacuum or Pressure
- Capacity
- Large scale
- Load Type
- Slurry
- Material construction
- QVF glass / De Dietrich glass-lined steel / Stainless steel / Hastelloy
- Application suitability
- Vacuum or pressure applications
- Control panel type
- Customizable based on specific industry needs
- Filtration media type
- Customizable based on application
