Stand-up pouch making system

Efficiently transform pre-printed reels into customizable stand-up pouches with precise unwinding, punching, and sealing, ensuring adaptability for diverse packaging needs and rapid size changeovers.

Forms and Seals Stand-Up Pouches

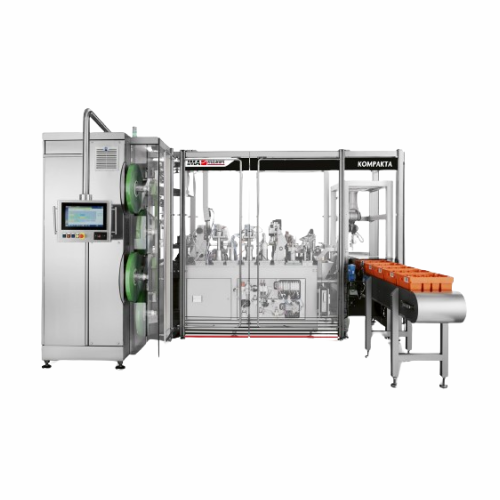

The Kompakta from IMA Group is a linear pouch-making machine designed to create stand-up pouches from pre-printed reels, offering manufacturers significant flexibility in shape and size customization. This machine unwinds, punches, cuts, and seals materials to produce pouches efficiently, making it ideal for industries such as food, dairy, and personal care. With a nominal production speed of 400 pouches per minute, it ensures high-speed operation through its seamless reel replacement and automatic splicing rejection. The Kompakta supports pouch sizes ranging from 100 to 200 mm in height and 70 to 150 mm in width, utilizing materials like Triplex and Quadruplex. Its integration capabilities include an end-of-line packer for sorting and boxing, while the straightforward size changeover feature minimizes downtime, promoting production line versatility. Total installed power is 25 kW, and the machine is robust with a weight of 2,000 kg. Kompakta facilitates energy-efficient operations with emphasis on fast and adaptable production changeovers, meeting diverse packaging needs.

Benefits

  • Increases production efficiency with speeds up to 400 pouches per minute.
  • Enhances packaging flexibility through quick and easy size changeovers.
  • Minimizes material waste and rejects with automatic splicing detection and rejection.
  • Streamlines packaging operations with integrated end-of-line packing solutions.
  • Allows for creative packaging solutions with customizable pouch shapes and sizes.

General


Applications
Food,Home care,Snacks,Confectionery,Beverage,Coffee,Sweets,Personal,Tea,Dairy
End products
Shampoo sachets,Fruit juice pouches,Gummy bears,Granola bars,Cheese slices,Tea bags,Chips,Yogurt pouches,Ground coffee,Detergent pods
Steps before
Pre-printed reel loading,Material preparation,Reel unwinding
Steps after
End-of-line packing,Boxing,Tray loading
Input ingredients
pre-printed reels,pouch material,triplex,quadruplex
Output ingredients
stand-up pouches,finished pouch
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Nominal Production Speed
400 ppm
Pouch Height Range
From 100 to 200 mm
Pouch Width Range
From 70 to 150 mm
Pouch Material
Triplex,Quadruplex
Total Installed Power
25 kW
Weight
2,000 Kg
Automation
Automatic unwinding,punching,cutting,and sealing
Changeover Time
Just a few minutes

Operating Characteristics


Automation level
Fully automatic
Changeover time
Few minutes
Batch vs. continuous operation
Batch
Integrated steps
Unwinding,punching,cutting,and sealing
High-speed reel replacement
Yes
Splicing identification and rejection
Automatic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Pouch shape flexibility
Customizable shapes

Physical Characteristics


Machine footprint
Compact design
Pouch height range
From 100 to 200 mm
Pouch width range
From 70 to 150 mm
Pouch Material
Triplex,Quadruplex
Total installed power
25 kW
Weight
2,000 Kg
Feed method
Automatic unwinding from reels
Discharge method
Automatic packing into boxes or trays

Custom Options


Pouch shape customization
Custom shapes available
Pouch size customization
Various sizes available
Size changeover time
Few minutes
Machine setup
Dual reel for front and back
Packing configuration
End-of-line packer standard
