Spray dryers for lithium iron phosphate powder production

Optimize your lithium battery and electric vehicle production with precision-engineered spray drying, ensuring superior particle size distribution and energy recovery for enhanced battery performance and efficiency.

Atomizes and Dries Lithium-Iron Phosphate Powders

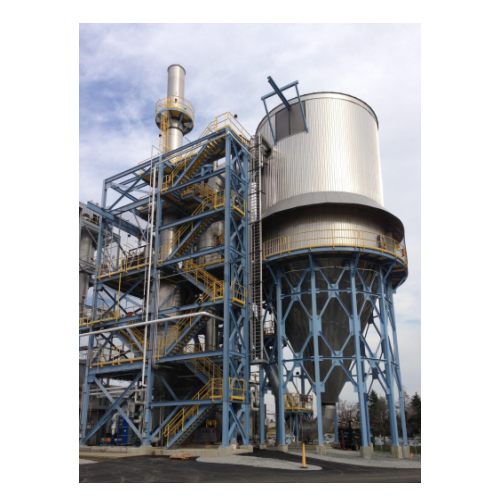

The LFP Spray Dryer from Dedert Corporation is designed to meet the rigorous demands of lithium-iron phosphate powder production for electric vehicles and high-capacity batteries. Using sophisticated atomization technology, it delivers precise control over particle size distribution, essential for producing high-energy density batteries. The single-stage spray drying process uses rotary and nozzle atomizers capable of handling varying feed compositions, ensuring uniform drying. Operating continuously at high speeds, the system integrates seamlessly into your production line, employing energy optimization techniques such as waste heat recovery to improve efficiency. Constructed from durable materials for chemical resistance, it supports a wide range of applications in automotive, chemical, and energy industries. Configurable for your specific needs, Dedert provides engineering support to customize atomization features and drying parameters.

Benefits

  • Ensures precise particle size for high-energy density battery production, enhancing performance.
  • Operates continuously at high speed, maximizing throughput and reducing cycle times.
  • Incorporates energy recovery systems, minimizing energy consumption and operational costs.
  • Configurable design allows for seamless integration and adaptation to specific production requirements.
  • Constructed from chemically resistant materials, suitable for demanding industrial environments.

General


Applications
Grains,Electric vehicles,Chemical,Plant-based protein,Food ingredients,Starch,Batteries,Biofuel,Lithium iron phosphate
End products
High-capacity battery materials,Grain-based ingredient powders,Biofuel additives,Plant-based protein powders,Specialty chemicals,Food additive powders,Starch derivatives,Electric vehicle power cells,Lithium iron batteries
Steps before
Purification,Grinding,Mixing into liquid slurry
Steps after
Cyclone separation,Particle collection,Packing
Input ingredients
lithium-based feeds,liquid slurry,electrode materials
Output ingredients
fine lithium powder,5-10 microns particle size,fine particles,collective in cyclones or a filter
Market info
Dedert is known for its expertise in designing and supplying advanced drying and evaporation technologies, serving the chemical, food, and other processing industries with innovative and efficient engineered-to-order solutions.

Technical Specifications


Particle Size
5–10 µm
Automation
Integration with PLC for process control
Atomizer Type
Air Bearing Atomizer / Air Assisted Pressure Nozzle
Energy Efficiency
Waste heat and flue gas recovery
Operation Type
Single-stage spray drying

Operating Characteristics


Working Mechanism
Spray Drying with Atomization
Batch vs Continuous Operation
Batch
Atomizing Technology
Air Bearing Atomizer / Air Assisted Pressure Nozzle
Energy Optimization Features
Waste Heat Recovery / Flue Gas Utilization
Automation Level
PLC with Energy Efficiency Monitoring
Particle Size Control
5-10 Microns

Material Compatibility


Density/particle size
5–10 microns

Physical Characteristics


Atomizer type
Air Bearing Atomizer (ABA) / Air Assisted Pressure Nozzle (AAPN)
Spray chamber design
Single-stage spray dryer
Particle size distribution
5-10 microns
Discharge method
Colletion in cyclones or filter

Custom Options


Control panel type
PLC / HMI
Atomizing Technology
Air Bearing Atomizer / Air Assisted Pressure Nozzle
Integration Possibilities
Energy Optimization / Heat Recovery
