Spiral chute for gentle product handling in limited space

Optimize your snack and nut production by minimizing product damage with this uniquely designed spiral chute, ensuring controlled acceleration and first-in/first-out flow to maintain premium product quality even in space-constrained environments.

Ensures Controlled Product Acceleration and Flow

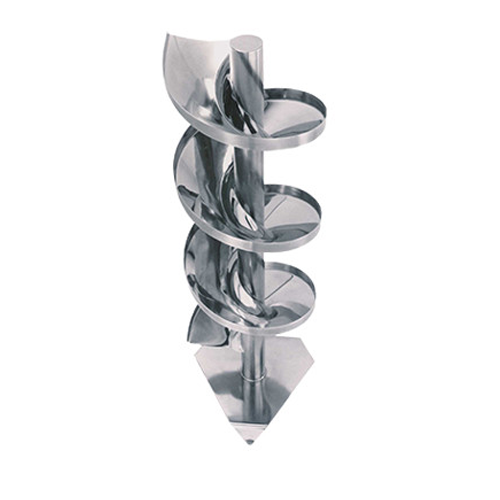

The Smooth-Flo Chute by AC Horn Manufacturing is an engineered spiral chute designed to enhance your production line efficiency. It is pivotal in preventing product breakage through its unique design that enables controlled acceleration and first-in/first-out flow. Ideal for food and pharmaceutical sectors, this equipment handles a variety of end-products including cheese popcorn, granola, and roasted nuts, while integrating seamlessly with existing conveyor systems.

The Smooth-Flo Chute operates without cross seams or ridges, eliminating product flow disruptions and ensuring high-quality product appearance. It’s constructed with materials that meet industry standards for safety and hygiene, suitable for continuous operations. Customizable to your specific production requirements, the chute ensures optimal performance, making it an indispensable component in material handling applications.

Benefits

  • Minimizes product breakage during transfer, ensuring consistent quality and appearance.
  • Designed for space-limited environments, optimizing your facility layout.
  • Enhances product flow control, increasing process efficiency and reducing waste.
  • Offers first-in/first-out handling, ensuring uniform product shelf life.
  • Customizable design tailored to specific operational requirements, improving operational flexibility.

General


Applications
Snacks,Pellets,Chips,Nuts,Sweets,Popcorn,Corn tortillas,Nut butter
End products
Roasted almonds,Granola snacks,Caramel-coated nuts,Honey roasted peanuts,Tortilla chips,Cheese popcorn,Peanut butter,Peanut chocolate clusters,Corn chips,Sunflower seeds,Caramel popcorn,Puffed corn pellets
Steps before
Sorting,Cleaning,Blanching,Roasting,Cooking
Steps after
Packing,Coating,Seasoning,Collating,Conveying
Input ingredients
popcorn,roasted nuts,coated nuts,blanched peanuts,japanese peanuts,nut butter,corn tortillas,chips,pellets
Output ingredients
smooth-flow product,gentle product handling,first-in/first-out product flow,high-quality appearance
Market info
AC Horn Manufacturing is renowned for its expertise in manufacturing industrial equipment for food processing, particularly in nut processing, popping equipment, and material handling systems, known for high-quality engineering and reliable performance in demanding industrial applications.

Technical Specifications


Product Flow Design
First-in/First-out
Material Velocity
Constant
Product Degradation Control
Eliminated
Customization
Dimensions,Product Flow
Sanitary Design
Yes
Space Requirements
Compact

Operating Characteristics


Working mechanism
Spiral chute,controlled velocity
Product handling
Gentle,reduces breakage
Product flow
First-in/first-out
Space efficiency
Compact design for limited spaces
Customization
Based on product specifications

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape compatibility
Custom designed
Gentle product handling
Yes

Physical Characteristics


Machine footprint
Compact,space-saving design
Discharge method
Controlled and gentle slope
Shape
Spiral,smooth flow
Customization
Made to customer specification
Construction
No cross seams or ridges
Product flow
First-in/first-out

Custom Options


Custom Design
Based on product specification
Dimensional Targets
Customizable
Product Flow Characteristics
Customized
Process Requirements
Tailored to customer needs
