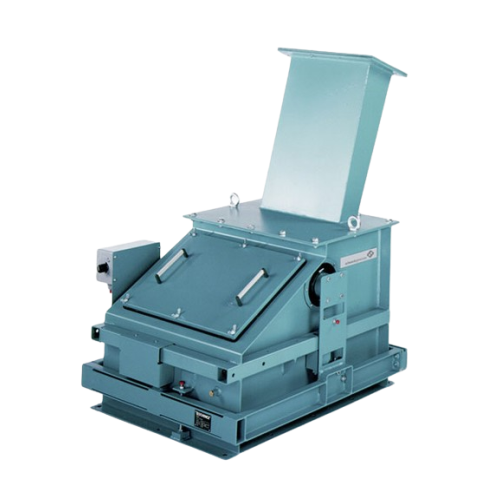

Solid flow meter for continuous bulk material measurement

Ensure consistent and accurate measurement of bulk solid materials with a system that captures precise data without incorporating impact factors, vital for streamlined batching and feeding operations.

Measures and Records Bulk Material Flow

The MULTISTREAM G Solid Flow Meter from Schenck Process Europe GmbH is a compact, in-line measurement system designed for precise, continuous recording of bulk solid flows using non-impact force measurement. This technology gently deflects the material stream within a measuring chute, ensuring accurate, reproducible data unaffected by variable impact factors. Suitable for applications in industries such as chemicals, fertilizers, and steelmaking, it excels in measuring throughput and consumption for end-products like polypropylene and cement. With its robust, dust-tight construction, it can be customized as a feeding system with flow-controlled pre-feeders and tailored designs for handling hot materials. The system supports integration with bulk material handling and feeding processes, enhancing production consistency and efficiency. Capable of both batch and continuous operations, the MULTISTREAM G can manage various materials, including powders and granules. For chemical environments, corrosion-resistant materials are available, ensuring durability and compliance with industrial standards. Enhanced with options for automation and remote monitoring, this meter offers reliable performance across diverse operational conditions.

Benefits

  • Ensures consistent product quality with precise, impact-free flow measurement.
  • Reduces operational costs through efficient integration with existing production lines.
  • Enhances system reliability in harsh industrial conditions with robust, dust-tight construction.
  • Customizable designs accommodate varied material characteristics, including temperature and abrasiveness.
  • Supports sustainable operations with adaptable configurations for diverse materials and processes.

General


Applications
Chemicals,Catalysts,Bioplastics,Recycling,Steelmaking,Agrichemicals,Coal,Polyolefins,Additives,Masterbatch,Biomass,Batteries,Fertilizers,Film,Cement
End products
Steel billets,Biomass pellets,Polypropylene,Ammonium nitrate fertilizers,Polymer additives,Masterbatch color concentrates,Lithium-ion battery cathode materials,Coke pellets,Portland cement,Catalytic converters,Urea granules,Recycled plastic pellets,Biodegradable packaging films,Pesticide granules,Organic film coatings,Polyethylene films
Steps before
Pre-feeding,Bulk solid preparation
Steps after
Batching,Mixing,Charging at loading station
Input ingredients
bulk solids,grain,additives,raw meal
Output ingredients
throughput measurement,consumption measurement,batched materials,charged materials
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Measurement Method
Non-impact force
Construction
Dust-tight,robust
Application Type
Continuous recording
Deflection Technique
In-line measuring chute
Throughput Measurement
Bulk solids
Feeder Control
Flow-controlled pre-feeder
Design
Individual,for hot materials

Operating Characteristics


Working Mechanism
In-line,Non-impact Force Measurement
Batch vs. Continuous Operation
Continuous
Material Deflection Method
Gentle,In-line Measuring Chute
Integration with Pre-feeder
Flow-Controlled Pre-feeder
Customization
Individual Designs Available
Construction Type
Dust-tight,Robust Construction
Application Specific Designs
Yes,Including Hot Materials

Physical Characteristics


Discharge method
In-line measuring chute

Custom Options


Construction Material
Dust-tight,robust construction
Pre-feeder Integration
Flow-controlled pre-feeder
Design Customization
Special individual designs,even for hot materials
Measurement System
Non-impact force measurement
Inline Chute Configuration
Gently deflected via measuring chute
