Softgel pre-dryer tumbler system

Ensure optimal shape and seam formation of softgel capsules with efficient oil removal, paving the way for seamless integration into your production line. Maximize productivity with automated transfer between drying baskets designed for single-person operation.

Efficiently Dries and Shapes Softgel Capsules

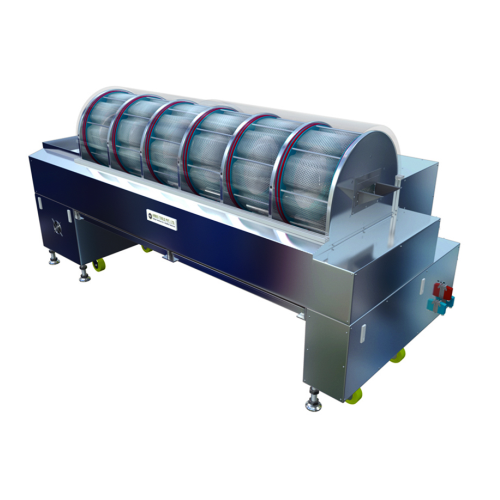

The ARBES Fluidizer from Arbes Tools Pvt. Ltd. is designed for manufacturers looking to optimize their softgel production. Featuring a six-basket configuration, the Fluidizer excels in maximum oil removal while precisely shaping and sealing softgel capsules. Lightweight baskets enable easy handling during operation, ensuring continuous production without interruptions. Ideal for nutraceutical and pharmaceutical applications, it enhances production lines handling products like Omega-3 and CBD oil softgels. The system integrates seamlessly into existing processes, equipped with high CFM blowers to ensure uniform airflow. With basket capacities accommodating up to 45kg and designed in corrosion-resistant SS316, the Fluidizer meets rigorous industry standards. Its efficient design reduces energy consumption compared to conventional tray drying systems, while easy maintenance facilitates quick cleaning and minimizes downtime.

Benefits

  • Maximizes oil removal and shape integrity for enhanced softgel quality.
  • Facilitates streamlined operation with easy-to-handle, lightweight baskets.
  • Reduces drying time significantly, improving production efficiency.
  • Integrates seamlessly with existing systems for continuous processing.
  • Complies with industry standards for safety and performance.

General


Applications
Supplements,Softgel capsules,Pharmaceuticals,Nutraceuticals,Veggie gelatin products
End products
Omega-3 softgel capsules,Fish oil supplements,Probiotic capsules,Plant-based gelatin capsules,Herbal extract capsules,Cbd oil softgels,Multivitamin supplements,Coenzyme q10 softgels,Vitamin d3 softgel supplements
Steps before
Softgel encapsulation,Capsule filling
Steps after
Quality inspection,Softgel packing,Storage
Input ingredients
softgels,capsules
Output ingredients
dried softgels,dried capsules,oil-free softgels,well-shaped softgels,sealed softgels
Market info

Technical Specifications


Automation
Auto-transfer of softgels between baskets
Capacity
CDS25
Drying Time
Reduction from 44 hours to 22 hours
Blowers
2 high CFM blowers for each basket
Material
SS316 baskets and SS304 trolleys
Mesh Opening
Maximum mesh opening for efficient air-flow
Drying Capacity
Approximately 1000 softgels per tray
Trolley Capacity
Between 40-50 trays per trolley
Room Conditions
Eliminates need for air-conditioned rooms

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
NA
Working mechanism
Fluidizer / Pre-Dryer Tumbler / Continuous Drying / Standalone
Cleaning method
Manual

Material Compatibility


Corrosive resistance (e.g. acids)
SS316
Food contact compliance
DFA and EEC materials


FDA materials
FDA-approved materials for direct food contact

Physical Characteristics


Basket arrangement
Six basket arrangement
Basket capacity
20kg / 45kg
Material of basket
SS316
Batch load capacity
100kg
Trolley material
SS304
Tray stacking per trolley
40-50 trays
Tray self-stacking sides
2-4 sides open
Softgel capacity per tray
Approximately 1000 softgels

Custom Options


Control panel type
Available
Compact footprint
Yes
