Small automatic gummy line
Streamline your gummy production with a compact system designed to deliver precision deposits and optimize output, handling both batch and semi-continuous processes for diverse confectionery needs.
Deposits and Processes Gummies Efficiently

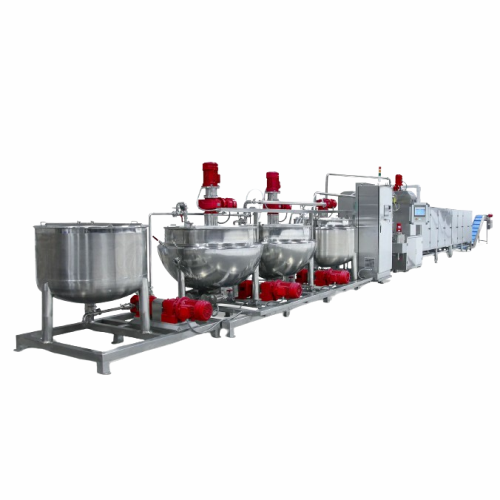

The GT150 Gummy Production System from GummyTech is an innovative solution designed for confectionery and nutraceutical manufacturers. This compact system excels in depositing gummies efficiently, offering both batch and semi-continuous processing options to meet diverse production needs. Capable of producing up to 15,000 gummies per hour, it caters to a wide range of applications, including multivitamin gummies, herbal supplements, and probiotic gummies. Its dual kitchen format allows for flexibility, while its PLC-controlled automation ensures seamless integration into existing production lines. Constructed with stainless steel for durability and hygiene, the GT150 aligns with rigorous industry standards, making it ideal for food-grade operations. With customizable configurations available, it accommodates specific engineering requirements, ensuring compatibility with other processes such as final conditioning.
Benefits
- Increases production efficiency by depositing up to 15,000 gummies per hour.
- Saves space with a compact design ideal for facilities with limited footprint.
- Offers flexible production with both batch and semi-continuous processing capabilities.
- Ensures seamless integration with existing production lines through PLC-controlled automation.
- Supports a variety of gummy formulations, accommodating diverse product lines in confectionery and nutraceutical sectors.
- Applications
- Supplements,Vitamins,Nutraceuticals,Gummies,Sweets
- End products
- Multivitamin gummies,Calcium gummies,Probiotic gummy supplements,Herbal supplement gummies,Gummy candies,Vitamin d3 gummies,Vitamin c gummies,Fruit-flavored gummies,Omega-3 gummy vitamins,Zinc supplement gummies
- Steps before
- Ingredient Mixing,Heating,Gelatinization
- Steps after
- Cooling,Drying,Packaging
- Input ingredients
- Output ingredients
- Market info
- Production capacity
- Up to 15,000 gummies per hour
- System format
- Single kitchen batch / Dual kitchen semi-continuous
- Power requirements
- 220V/3PH/60HZ or 480V/3PH/60HZ
- System dimensions
- 26L x 4.5W x 9H (ft)
- Gross weight
- Approx. 2100 Kg (Depositor and Cooler)
- Production capacity
- Up to 15,000 gummies per hour
- Operation format
- Single kitchen "batch" or dual kitchen "semi-continuous"
- Space requirement
- 26L x 4.5W x 9H (ft)
- Automation level
- Automatic
- Power requirement
- 220V/3PH/60HZ or 480V/3PH/60HZ
- Biological compatibility
- Food-grade materials
- Cleanability
- CIP/Manual cleaning capability
- Corrosive resistance (e.g. acids)
- Stainless steel resistant to food acids
- Density/particle size
- N/A for gummies
- Heat sensitivity
- Temperature controlled
- Compact footprint
- 26L x 4.5W x 9H (ft)
- Gross Weight
- Approx. 2100 kg (Depositor and Cooler)
- Dual Kitchen Format
- Semi-continuous
- Single Kitchen Format
- Batch
- Control panel type
- HMI with PLC
- Compact footprint
- Yes
