Slicing loader for automatic portion loading

Efficiently manage portion loading with a system designed to balance slicing flow, seamlessly integrating into high-speed production lines, ensuring optimal handling of various food products from deli meats to alternative proteins.

Accumulates and Loads Sliced Food Portions

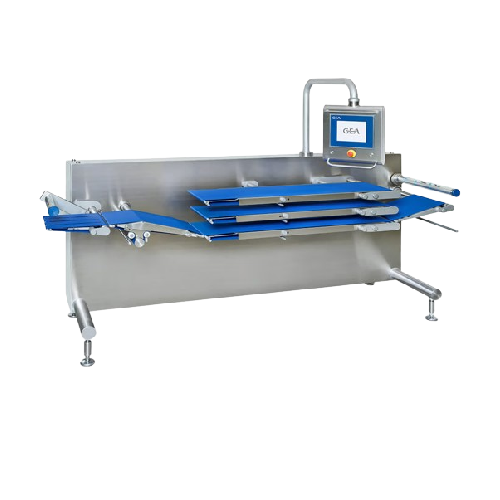

The GEA HorizontalBuffer is a pivotal solution for food processors, utilizing a multi-level buffer system to efficiently accumulate and load sliced food portions. Designed to ensure seamless integration into high-speed production lines, it handles products such as deli meats, cheese, and alternative proteins with precision. This equipment excels in automatic sorting and conveying of portions through intelligently synchronized conveyors, optimizing material flow and minimizing downtime during the slicing process.

Capable of processing up to 100 portions per minute, the HorizontalBuffer can be combined with the GEA InLiner for enhanced lane management, allowing two lanes to converge into one with precision. Its operator-friendly interface, shared with slicers and thermoformers, ensures ease of use and consistent operation. Constructed with an open design, it boasts easy accessibility and rapid belt removal facilitated by pneumatic tension, streamlining maintenance and cleaning tasks.

The equipment meets stringent hygiene standards, requiring no tools for disassembly, and is equipped with a touch-screen interface for intuitive operation. Optional correction lanes further support quality control by handling rejected portions, providing flexibility in ensuring product weight accuracy. With robust construction and optional configuration support, the GEA HorizontalBuffer is engineered to meet diverse production demands efficiently.

Benefits

  • Enhances production efficiency by synchronizing loading speeds with downstream systems.
  • Minimizes operational delays with automatic accumulation and sorting capabilities.
  • Facilitates easy maintenance and rapid cleaning with tool-free disassembly.
  • Improves quality control with integrated correction lanes for accurate portion management.
  • Ensures adaptability and scalability with configurable lane management options.

General


Applications
Food,Alternative proteins,Processed foods,Meat processing,Dairy products
End products
Ready-to-eat meal components,Sliced cooked meats,Turkey slices,Sliced cheese,Alternative protein deli slices,Pre-packaged cold cuts,Deli meats,Sliced ham,Plant-based sandwich slices
Steps before
Slicing,Portion Accumulation
Steps after
Portion Loading,Weight Correction,Product Distribution
Input ingredients
sliced portions,incorrect weight portions
Output ingredients
accumulated portions,loaded portions,corrected weight portions
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
Automatic loading
Capacity
Up to 100 ppm
Buffer Width
400 mm
Operation Type
Continuous or batching
Screen Size
10" colored touch-screen
Hygiene
Perfect hygiene,easy cleaning

Operating Characteristics


Working mechanism
Horizontal buffer
Integrated steps
Portion loading and sorting
Batch vs. inline operation
Continuous / Batching
Automation level
Automated with operator interface
Changeover time
Fast preparation
Cleaning method
Fast preparation,no tools required

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Correction capability
Upper correction lane for incorrect weights

Physical Characteristics


Machine footprint
Compact design
Buffer width
400 mm
Number of buffer levels
3
Belt type
Wide belts for smooth handling
Open design and accessibility
Very open
Operator interface
10” colored touch-screen
Control panel type
Touch-screen panel
Conveyor tension method
Pneumatic

Custom Options


Control panel type
10” colored touch-screen
Integration possibilities
GEA InLiner 2-lane to 1-lane
Correction lane option
Optional with upper correction lane
Belt removal method
Pneumatic tension
