Skid-mounted yeast propagation system for craft breweries

Enhance your brewing capabilities with a versatile propagation system, designed to optimize yeast cultivation for various fermented beverages and enable consistent production of distinct beer flavors, without the need for separate yeast storage tanks.

Propagates and Aerates Yeast for Fermentation

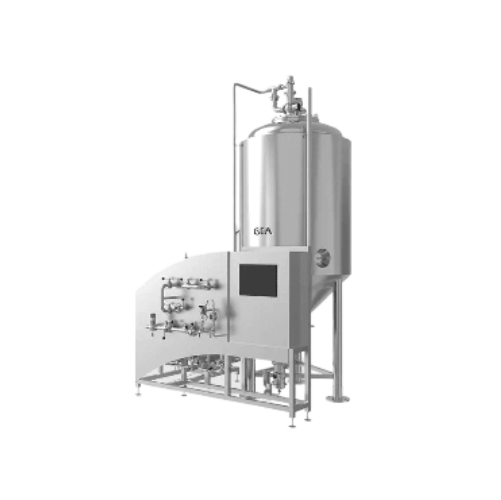

The GEA Craft Yeast Propagator is a skid-mounted system designed for craft and small to medium-sized breweries, enhancing the yeast propagation process to meet specific brewing requirements. It features a pre-engineered modular design for easy transportation and setup, which complements GEA’s CRAFT-STAR® and COMPACT-STAR® brewing systems. The system supports batch sizes from 5 to 25 hl, offering customizable options such as living cell measurement, load cells, and an internal clean-in-place (CIP) system for efficient cleaning.

Integrating semi-automated control, it allows brewmasters to experiment while maintaining consistency across brews. The propagation system includes an internal aeration mechanism with a sterile air measuring unit, eliminating the need for a stirrer, which optimizes the growth environment for yeast cultures used in producing hazy IPAs, saisons, kettle sours, and more. Energy-efficient operations are achieved through streamlined processes like storage and sterilization, catering to the demands of fermentation in craft beers and beverages.

Benefits

  • Facilitates easy transport and setup with a modular skid-mounted design.
  • Increases operational flexibility, allowing brewmasters to experiment and innovate.
  • Reduces equipment footprint by storing yeast within the system, eliminating the need for additional tanks.
  • Saves time and ensures hygiene with an optional internal clean-in-place system.
  • Boosts fermentation efficiency through precise, sterile aeration without a mechanical stirrer.

General


Applications
Fermented beverages,Craft beer,Yeast cultures
End products
Belgian dubbel,Kimchi fermentation cultures,Miso fermentation cultures,Saisons,Hazy ipas,Sake,Kombucha,Kettle sours
Steps before
Yeast preparation,Sterilization of equipment,Nutrient preparation
Steps after
Fermentation,Beer conditioning,Packaging
Input ingredients
yeast,water,nutrients,sterile air
Output ingredients
propagated yeast,yeast crop
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Batch size
5–25 hl
Production volume
5–25 hl
Automation
Semi-automated control
Aeration system
Sterile air measuring unit
Tank components
Tank,tank top,and pump
CIP system
Available as an option
Recirculation pipe
Used for internal aeration
Living cell measurement
Available as an extra
Load cells
Available as an extra
Sterilizing option
Available as an extra

Operating Characteristics


Working Mechanism
Skid-mounted yeast propagation
Batch vs. continuous operation
Batch
CIP/SIP
Manual / CIP option available
Automation level
Semi-automated control
Integrated steps
Yeast propagation and storage

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Propagation capacity
5–25 hl
Batch size flexibility
5–25 hl

Physical Characteristics


Skid-mounted design
Yes
Tank size
5–25 hl
Modular process skid
Pre-engineered
Discharge method
Recirculation pipe and internal aeration system
Footprint
Compact

Custom Options


Tank Size
5–25 hl
Living Cell Measurement
Available
Load Cells
Available
Sterilizing Option
Available
Clean-in-Place System
Available
Internal Aeration System
Available
