Single screw feeders for granules

Optimize the feeding of well-flowing granules with precision and consistency—key for maintaining quality across continuous processing operations.

Feeds Granules Efficiently in Various Industrial Processes

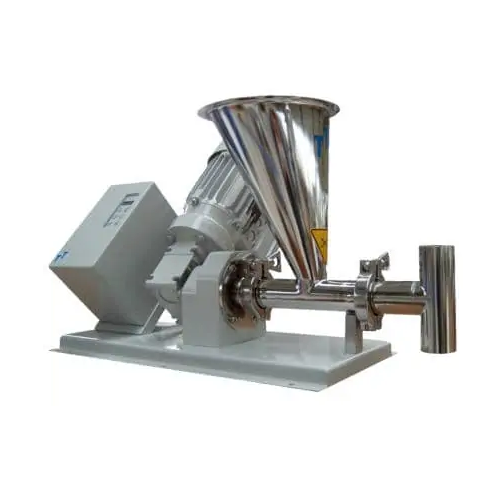

The ED XX Q-Line from Three-Tec GmbH offers a cost-effective solution for precise feeding of well-flowing granules in chemical, plastics, and food industries. These single-screw feeders efficiently operate without bridge destroyers, making them ideal for continuous and manual feeding processes. With a capacity ranging from 2.0 to 800 dm³/h, they integrate seamlessly into existing feeding systems, supported by quick mounting clamps for adaptable hopper configurations. Constructed for versatility, the feeders accommodate various bulk solids as well as granules up to 15 mm, and they enhance productivity with reduced downtime and lower maintenance requirements. Customization is available to meet specific operational needs, ensuring compatibility across diverse production environments.

Benefits

  • Enhances operational efficiency with precise and continuous granule feeding.
  • Reduces labor costs through easy mounting and maintenance-free design.
  • Versatile application across chemical, plastics, and food industries.
  • Minimizes downtime with quick-change hopper system.
  • Compatible with a wide range of bulk solids, ensuring flexible production capabilities.

General


Applications
Granules,Process engineering,Bulk solids,Feeding systems,Industrial materials,Well-flowing granules
End products
Powdered minerals,Plastic resins,Polymer granules,Agricultural seeds,Animal feed pellets,Food granules,Powdered chemicals,Plastic pellets,Dry fertilizers,Industrial additives
Steps before
Material Selection,Pre-sorting,Initial Weighing
Steps after
Blending,Mixing,Packaging
Input ingredients
well-flowing granules,particles up to 15 mm
Output ingredients
fed materials,regulated flow,precision dosing
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Feeding rate
2.0 to 800 dm³/h
Particle size
Up to 15 mm

Operating Characteristics


Feeding mechanism
Single-screw
Feeding rate
2.0 to 800 dm³/h
Particle size suitability
Up to 15 mm
Mounting method
Clamp mounted
Bridge prevention
No bridge destroyer/breaker
Material handling
Well-flowing granules
Operation type
Low-cost

Material Compatibility


Particle size compatibility
Up to 15 mm
Abrasion resistance
Suitable for well-flowing granules
Density/particle size
0.5–2.5 g/cm³ / Up to 15 mm

Product type Characteristics


Suitable material
Well-flowing granules
Feeding system type
Single screw feeders

Physical Characteristics


Feed method
Single screw
Particle size
Up to 15 mm
Hopper mounting
Clamp
Outlet tube mounting
Clamp

Custom Options


Mounting system
Clamp mount
Hopper capacity customization
Additional hoppers available
