Single conditioner for feed mills
Achieve homogeneous mixing and enhanced hygiene in feed production with adjustable paddles, optimizing steam and liquid absorption, for consistently high-quality end products.
Mixes and Conditions Feed with Precision

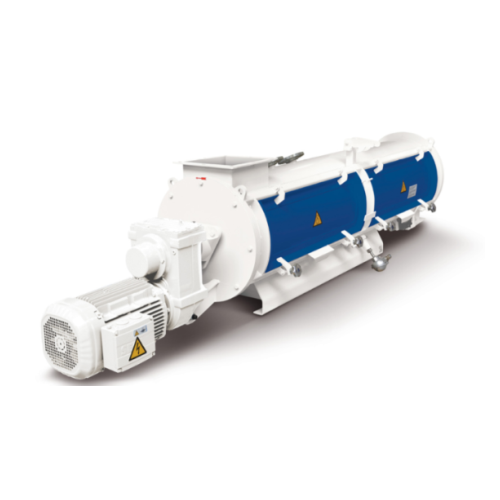

The Single Conditioner Mixer from Ottevanger Milling Engineers is uniquely designed with large, adjustable paddles, enhancing homogeneity and hygiene in feed production. It efficiently mixes and conditions various feed products like kibble and fish pellets by optimizing steam and liquid absorption. This mixer is integral to high-speed, continuous operations across feed and pet food production lines, handling both solid and liquid inputs. Built with AISI 304 stainless steel, it offers robust corrosion resistance. The optional insulated, electrically heated version minimizes condensation, aiding temperature-sensitive applications. With direct gear motor drive, it supports frequency control for process flexibility. Maintenance is streamlined with large inspection doors, while the heavy-duty construction minimizes downtime and maximizes lifespan.
Benefits
- Enhances feed quality through consistent mixing and optimal steam absorption.
- Reduces operational costs with robust, low-maintenance design.
- Prevents condensation and improves efficiency with optional electric heating.
- Adapts to production requirements with adjustable paddle configuration.
- Minimizes downtime with easy-to-clean construction.
- Applications
- Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
- End products
- Canola meal,Chicken feed,Sunflower oil,Vegetable oil,Soy flour,Mineral premix,Kibble,Protein concentrates,Fish pellets,Lecithin,Cattle feed,Soy protein isolate,Vitamin premix
- Steps before
- Grinding,Dosing,Weighing
- Steps after
- Pelleting,Drying and Cooling,Coating
- Input ingredients
- steam,liquids
- Output ingredients
- homogeneous mixture,conditioned feed material
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Mixer housing material
- AISI 304
- Base plate construction
- Heavy-duty steel
- Interchangeable paddles
- Yes,adjustable in height and pitch
- Material of paddles
- Hardox
- Direct drive
- By gear motor
- Temperature sensor
- PT 100
- Steam inlet size
- 3”
- Liquid inlets
- 2 inlets,1½” each
- Electric heat tracing system
- Optional
- Insulation material
- Rock-wool
- Capacity range
- 12.5 to 25.18 t/h
- Motor power
- 12.5 to 25.18 hp
- Mixing mechanism
- Adjustable paddles
- Automation level
- Suitable for frequency control
- Heating option
- Electric heat tracing system with insulation
- Cleaning method
- Easy to clean design
- Batch vs. continuous operation
- Batch
- Integrated steps
- Steam set integration
- Homogeneous mixing
- Height and pitch adjustable paddles
- Temperature monitoring
- Temperature sensor PT 1001
- Construction
- Stainless steel and Hardox paddles
- Abrasion resistance
- Hardox paddles
- Cleanability
- Easy to clean design
- Corrosive resistance (e.g. acids)
- Stainless steel AISI 304 construction
- Mixer housing material
- AISI 304
- Mixer shaft material
- AISI 304
- Paddle material
- Hardox
- Paddle adjustability
- Height and pitch adjustable
- Heating option
- Electric heat tracing system
- Insulation material
- Rock-wool
- Inspection doors
- Large with safety switch
- Paddle height adjustment
- Yes
- Paddle pitch adjustment
- Yes
- Electric heat tracing system
- Optional
- Insulation
- Rock-wool insulation available
