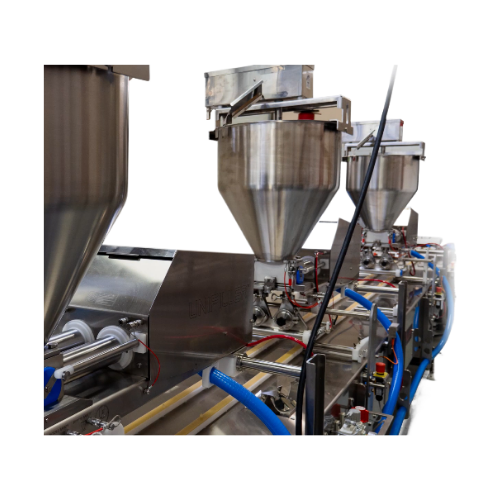

Sheet cake icing system for bakeries
Enhance your bakery’s efficiency with a high-speed icing system, expertly designed to perfect sheet cakes with precise icing and filling, while seamlessly integrating into your existing production line.
Automates Icing, Filling, and Decorating of Sheet Cakes
The Sheet Cake Icing Line from Unifiller offers a robust solution for bakeries and commercial cake manufacturers seeking to automate the icing and decorating process. This equipment is designed to swiftly mid-fill and base-ice sheet cakes at a rate of up to 10 cakes per minute, enhancing efficiency in high-volume environments. Servo-driven depositors with pre-programmed recipes optimize spread time and consistency, while Hopper Topper pumps ensure continuous operation 24/7, minimizing downtime. Ideal for use with various bakery products, the line accommodates vanilla, chocolate, and red velvet sheet cakes, along with layered sponge cakes and diverse icing applications like buttercream and fondant. Integration options include automated bordering lines and additional modules for cardboard placement and cake slicing, facilitating streamlined operations. The system is PLC-controlled, with a touch screen capable of storing up to 100 recipes, allowing for quick adjustments and ease of use. Cleaning is simplified through a no-tools-required washdown feature, ensuring hygiene and compliance with food safety standards. The Sheet Cake Icing Line is fully customizable to meet the specific needs of your bakery operation.
Benefits
- Boosts productivity by icing and decorating up to 10 sheet cakes per minute.
- Enhances operational efficiency with continuous 24/7 performance and minimal downtime.
- Simplifies recipe management with a user-friendly touch screen storing up to 100 configurations.
- Ensures high-quality finishes with servo-driven depositors for precise spreading.
- Reduces cleaning time and effort with easy washdown and no-tools-required maintenance.
- Applications
- Sheet cakes,Cake layers,Cake icing,Cake finishing,Bakery products
- End products
- Vanilla sheet cake,Layered sponge cake,Fondant icing,Red velvet sheet cake,Chocolate sheet cake,Whipped cream topping,Buttercream icing
- Steps before
- Cardboard placement,Cake slicing
- Steps after
- Cake bordering,Cake finishing
- Input ingredients
- sheet cake layers,icing materials,cardboard for cake placement
- Output ingredients
- iced sheet cakes,mid filled cakes,base-iced cakes,sliced cake layers
- Market info
- Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.
- Speed
- Up to 10 sheet cakes per minute
- Deposit Range
- Configured
- Particle Size
- Configured
- Power (Air)
- 4 CFM @ 80 psi per station
- Power (Electrical)
- 220 VAC,3 Phase
- Washdown
- Easy Washdown
- Automation
- Servo driven depositors with pre-programmed recipes
- Recipe Storage
- 100 recipes
- Working mechanism
- Servo driven depositors
- Integrated steps
- Mid fill and base-ice
- Automation level
- Pre-programmed recipes
- Performance monitoring
- Yes,touch screen with storage
- Cake production speed
- Up to 10 cakes per minute
- Cleanability
- Easy Washdown
- Particle size
- Configured
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Heat sensitivity
- Moderate
- Container size and shape
- Sheet cakes
- Machine footprint
- Configured per line
- Control panel type
- Touch screen with 100 recipe storage
- Discharge method
- Servo driven depositors
- Integration possibilities
- Automated Bordering Line,Cardboard Placement,Cake Slicing
- Control Panel Type
- Touch screen with 100 recipe storage
- Servo driven depositors
- Pre-programmed recipes for deposit and speed
- Add-On Compatibility
- Optional Board Placer,Optional Cake Slicer,Add-On Bordering Line
