Semi-automatic piston injector for bakery products

Enhance your bakery production with precise delivery of a wide range of liquid and semi-liquid ingredients, accommodating everything from creamy fillings to chunky sauces effortlessly.

Injects and Fills Liquid and Semi-Liquid Products

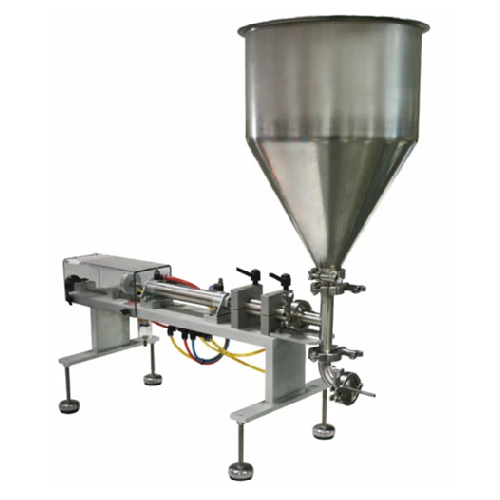

The SVF BT Injector from Accutek Packaging is a semi-automatic piston injector designed to precisely deliver a wide array of liquid and semi-liquid products, including those with particulates. Its robust stainless steel construction ensures durability and ease of cleaning, with sanitary-grade components for food safety. This equipment excels in applications within the food, bakery, and confectionery industries, effectively handling items like custards, jams, and salsas. The SVF BT Injector operates in batch processes, making it ideal for small to medium-scale productions in bakeries and food processing companies. Featuring a single-head filler configuration, it supports multi-stroke operations for customized dosing, with a product speed of up to 30 doses per minute. The injector can draw directly from drums and accommodate various nozzle configurations to meet specific production needs. Furthermore, it requires no electrical power and operates on compressed air, marked by an air requirement of 80 PSI at 1.5 CFM, contributing to energy efficiency. With optional heated product packages and mobile configurations, the SVF BT Injector offers flexibility and efficiency in production line integration.

Benefits

  • Enhances product accuracy with precise dosing capabilities for consistent quality.
  • Adapts to a wide range of food products, increasing production flexibility.
  • Offers quick and easy sanitation, minimizing downtime for cleaning.
  • Operates without electrical power, reducing energy expenses.
  • Facilitates easy integration into existing production lines with versatile configuration options.

General


Applications
Jellies,Liquid and semi-liquid products,Large particulate jelly fillings,Fruit fillings,Custards,Thick creams,Pastes,Salsa,Creams
End products
Whipped cream,Pico de gallo,Blueberry preserve with chunks,Vanilla custard,Strawberry jam,Peanut butter,Tomato sauce,Chocolate ganache,Raspberry fruit filling
Steps before
Product Preparation,Filling Material Mixing,Ingredient Handling
Steps after
Packing,Sealing,Labeling,Transporting to Storage
Input ingredients
custards,creams,fruit fillings,jellies,liquids,semi-liquid products,water thin liquids,thick creams,pastes,salsa,large particulate jelly fillings
Output ingredients
measured volume of product,doses,packaged products
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Length
22” (56 cm)
Depth
10” (24.5 cm)
Height
12” (30.5 cm)
Weight
~20 lbs. (9 kg)
Product Speed
Up to 30 doses per minute
Dose Size
.5oz – 2oz (15mL – 60mL)
Electrical Requirements
None
Air Requirements
80 PSI @ 1.5 CFM
Heated Product Capability
YES
Particulates Handling
YES

Operating Characteristics


Working mechanism
Piston cycling
Batch vs. continuous operation
Batch operation with multiple doses per container
Automation level
Semi-automatic
Changeover time
Quick due to quick connect sanitary parts
CIP/SIP
Not specified,but quick clean-up due to sanitary food grade contact parts
Product compatibility
Wide range from thin liquids to heavy creams and pastes
Cleaning method
Manual quicker due to design

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel

Physical Characteristics


Machine footprint
22" L x 10" D x 12" H
Weight
~20 lbs. (9 kg)
Construction material
Stainless steel
Product speed
Up to 30 doses per minute
Dose size range
.5oz – 2oz (15mL – 60mL)
Filler configuration
Single head with 2oz. cylinder
Air requirements
80 PSI @ 1.5 CFM

Custom Options


Nozzle configurations
Various
Heated product package
Yes
Product cylinder sizes
Larger options available
Mobility
Mobile stainless steel cart or table
Control mechanism
Foot switch control
Valves for particulates
Chunky product butterfly valves
