Semi automatic Pet bottle blow molding system

Enhance your production efficiency with a versatile blow molding system that precisely forms PET bottles and jars, accommodating diverse volume requirements from 0.1L to 20L. Ideal for streamlining beverage and consumer goods packaging.

Forms and Shapes PET Bottles and Containers

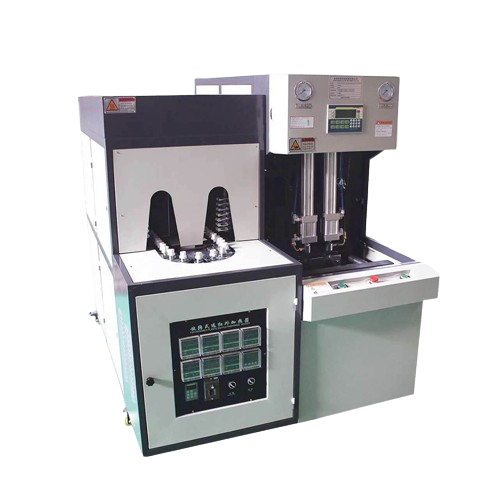

The SBM-8Y1 from Alps Machinery is a semi-automatic PET bottle blow molding machine designed to streamline the production of versatile plastic containers. With its robust construction, it molds PET bottles from 0.1L to 20L, making it perfect for industries like food and beverage, cosmetics, and chemicals. The SBM-8Y1 efficiently handles up to 800 bottles per hour, with maximum energy utilization due to its optimized system. Featuring a combination of blowers and ovens, the machine ensures precise formation and shaping of bottles, supporting a wide range of applications from mineral water and carbonated drinks to cosmetics and pesticides. Its semi-automatic operation facilitates integration into existing production lines, while the compact design allows easy maintenance and cleaning, boosting overall productivity for manufacturers.

Benefits

  • Enhances production efficiency by shaping up to 800 PET bottles per hour.
  • Versatile design accommodates a variety of container shapes and sizes, catering to diverse industry needs.
  • Reduces operational costs with optimized energy consumption.
  • Simplifies integration into existing production lines with semi-automatic operation.
  • Minimizes maintenance downtime with easy-to-clean components.

General


Applications
Mineral water,Daily chemicals,Edible oils,Wide-mouth jars,Cosmetics,Pesticides,Carbonated drinks,Pet cans,Juice
End products
Spring water bottles,Sparkling water bottles,Olive oil bottles,Liquid pesticide bottles,Pet soda cans,Orange juice bottles,Peanut butter jars,Shampoo bottles,Facial cream jars
Steps before
Preform Production,Preform Heating
Steps after
Bottle Filling,Capping,Labeling,Packing
Input ingredients
PET preforms
Output ingredients
PET plastic containers,bottles,mineral water bottle,carbonated drink bottle,juice bottle,pesticide bottle,oil bottle,daily chemical bottle,cosmetics bottle,wide-mouth jar,PET can
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Automation
Semi Automatic
Capacity
600-800 bottles per hour
Bottle sizes
0.1L-2L
Max bottle height
<350mm
Max bottle diameter
<120mm
Total power
15KW
High pressure air consumption
1.0m3/min 30kg
Weight
500kg

Operating Characteristics


Automation level
Semi Automatic
Batch vs. continuous operation
Batch
Air incorporation control
Available with high pressure air consumption options
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
0.1L to 20L
Container type
PET bottles

Custom Options


Control panel type
Standard / Customizable
Integration possibilities
Yes / As per requirement
Capacity customization
600-1500 bottles per hour
Bottle size range
0.1L to 20L
Blower options
One blower / Two blower
Oven configuration
One oven
