Semi automatic Pet bottle blow molding solution

Streamline your production with a semi-automatic solution designed for efficiently forming PET bottles, ideal for diverse packaging needs from beverages to cosmetics.

Forms and Molds PET Bottles

The SBM-8Y from Alps Machinery is a semi-automatic PET bottle blow molding machine designed to meet diverse production requirements across industries such as beverage, chemical, and cosmetics. This machine stands out for its capacity to handle bottle volumes ranging from 0.1L to 20L with flexibility in bottle design, enabling the production of mineral water, carbonated drink, juice, pesticide, and oil containers. Operating at a speed of up to 1,500 bottles per hour, it combines a single or dual blower system with a high-efficiency oven to ensure uniform heating and forming of PET bottles. The machine’s compact design allows easy integration into existing production lines, and its semi-automatic operation facilitates user control over the molding process. With a robust construction, this equipment offers high pressure air efficiency and supports varying bottle heights and diameters. The SBM-8Y also allows customization in terms of energy usage, with options to optimize power consumption depending on production demands. Maintenance is straightforward due to accessible machine components, supporting consistent operation with minimized downtime.

Benefits

  • Enhances production flexibility by accommodating diverse bottle sizes and designs.
  • Increases output efficiency with up to 1,500 bottles per hour capacity.
  • Reduces operational costs through efficient air consumption and energy usage.
  • Integrates seamlessly into existing production lines, minimizing installation disruptions.
  • Simplifies maintenance with accessible components, minimizing downtime.

General


Applications
Carbonated beverages,Mineral water,Daily chemicals,Wide-mouth jars,Cosmetics,Pesticides,Pet cans,Juice,Edible oil
End products
Lotion bottles,Face cream jars,Iced coffee cans,Spring water bottles,Cola bottles,Sparkling water bottles,Citrus soda bottles,Olive oil bottles,Sunflower oil bottles,Orange juice bottles,Liquid detergent bottles,Peanut butter jars,Ready-to-drink tea cans,Shampoo bottles,Protein powder jars,Insecticide bottles,Agricultural pesticide containers,Apple juice bottles
Steps before
Preform Injection Molding,Preform Heating,Preform Preparation
Steps after
Bottle Filling,Capping,Labeling,Packing,Quality Inspection
Input ingredients
PET plastic,preform material
Output ingredients
PET plastic containers,PET bottles,mineral water bottles,carbonated drink bottles,juice bottles,pesticide bottles,oil bottles,daily chemical bottles,cosmetics bottles,wide-mouth jars,PET cans
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Automatic Type
Semi Automatic
Capacity (bottles/hour)
800-1500
Max Bottle Height
<350mm
Max Bottle Diameter
<120mm
Total Power
15KW-25KW
High Pressure Air Consumption
1.0-1.2m3/min at 30kg
Weight
500kg-800kg

Operating Characteristics


Automation level
Semi Automatic
Cleaning method
Manual
Batch vs. continuous operation
Batch
Energy efficiency
1.0–1.2 m³/min 30kg high pressure air consumption

Product type Characteristics


Application
PET Bottle Production

Physical Characteristics


Bottle size range
0.1L-20L
Max bottle height
<350mm
Max bottle diameter
<120mm
Weight
500kg - 800kg

Custom Options


Blower configuration

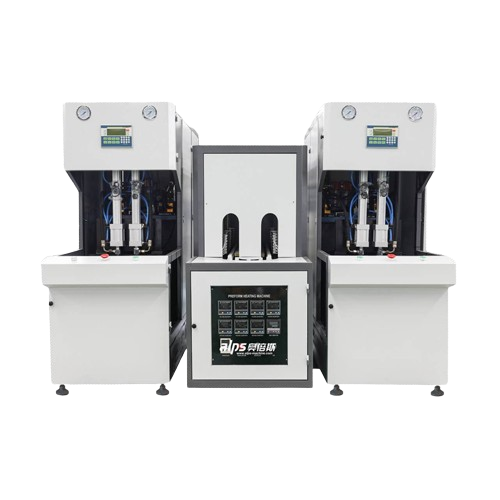

One blower + one oven / Two blower + one oven
Max bottle height
<350mm
Max bottle diameter
<120mm
