Semi-automatic Pet bottle blow molding solution

Optimize your production with precise and efficient blow molding for creating durable PET containers, designed to meet diverse needs across beverage, cosmetics, and chemical sectors.

Shapes Large PET Bottles Efficiently

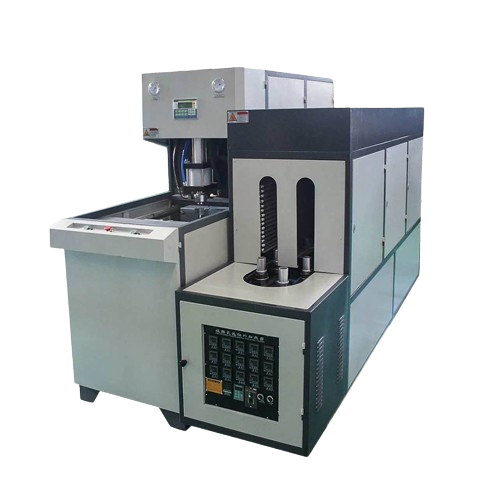

The SBM20L from Alps Machinery is a semi-automatic 5-gallon PET bottle blow molding machine tailored for businesses in the food, beverage, cosmetics, and chemical industries. This equipment excels in producing a range of large PET containers, such as spring water bottles, soda bottles, and shampoo bottles. It operates with a semi-automatic process, utilizing efficient blow molding, heating, and cooling techniques to ensure consistent product quality. The machine is capable of producing 800 to 1500 pieces per hour, making it a robust choice for scaling up production. With a compact design, the SBM20L allows seamless integration into existing production lines, working alongside upstream processes such as preform heating systems and downstream filling and labeling units. Energy consumption is optimized with its variable-speed motor, offering reduced operational costs. Built to accommodate high-pressure air systems, the machine ensures precision in bottle shaping. Maintenance is straightforward, with easy access to components and the option for engineering support to customize the machine’s specifications to your production needs.

Benefits

  • Increases production efficiency with a capacity of up to 1500 bottles per hour.
  • Reduces operational costs through variable-speed motor and optimized energy usage.
  • Integrates seamlessly into existing production lines, enhancing overall workflow.
  • Minimizes labor demand with its semi-automatic operation.
  • Versatile for multiple industries, accommodating diverse product ranges.

General


Applications
Mineral water,Plastic bottles,Daily chemicals,Pet containers,Oils,Cosmetics,Pesticides,Carbonated drinks,Juice
End products
Plastic sports bottles,Spring water bottles,Olive oil bottles,Soda bottles,Orange juice bottles,Pet storage canisters,Pesticide spray bottles,Peanut butter jars,Shampoo bottles,Facial cream jars
Steps before
Water Treatment,Preform Injection Molding
Steps after
Labeling,Filling,Packing
Input ingredients
PET plastic preforms
Output ingredients
PET plastic containers,bottles,mineral water bottle,carbonated drink bottle,juice bottle,pesticide bottle,oil bottle,daily chemical bottle,cosmetics bottle,wide-mouth jar,PET can
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
800–1500 pcs/hour
Max Bottle Height
<350 mm
Max Bottle Diameter
<120 mm
Power
15–25 KW
High Pressure Air Consumption
1.0–1.2 m³/min at 30 kg
Weight
500–800 kg
Bottle sizes
0.1L–2L
Automation
Semi Automatic
Function
Reverse Osmosis

Operating Characteristics


Automation level
Semi Automatic
Batch vs. continuous operation
Batch
Cleaning method
Manual
Changeover time
Quick changeover for different bottle sizes
Capacity range
800 ~1500 pcs Per hour
Air incorporation control
High pressure air consumption 1.0-1.2m3/min
Max bottle size
0.1L - 20L

Product type Characteristics


Container type
PET bottles
Container size
0.1L-20L
Production capacity
800-1500 pcs/hour
Container shape
Wide-mouth jar,PET can
