Semi automatic Pet bottle blow molding for 5l bottles

Maximize production efficiency by precisely forming PET containers for liquids ranging from beverages to chemicals, optimizing your packaging line with seamless integration.

Forms PET Bottles with Blow Molding

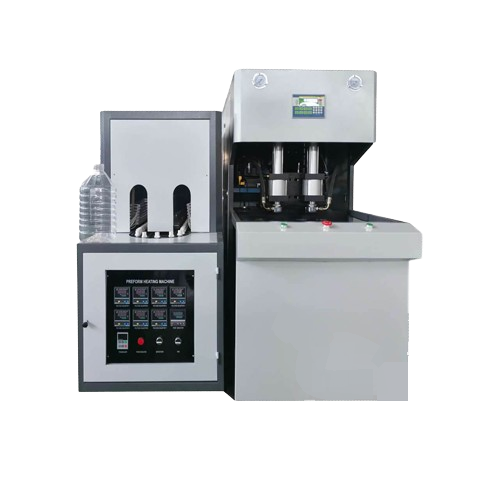

The SBM-9B from Alps Machinery is a semi-automatic PET bottle blow molding machine designed to efficiently create containers ranging from 2L to 10L. Utilizing precise blow molding techniques, it is capable of forming a diverse range of end products, including mineral water, beverage bottles, and cosmetics packaging. The machine operates with a combination of one or two blowers and an oven, achieving a throughput of up to 1,500 bottles per hour depending on the configuration. Equipped with an 18KW to 22KW power system, it maintains energy efficiency while ensuring high-quality bottle formation. The SBM-9B is designed to integrate seamlessly into existing processing and packaging lines, making it suitable for industries such as beverage, food, chemical, and cosmetics. With a focus on versatile production capabilities, this machine offers reliable performance for companies requiring flexible PET bottle solutions.

Benefits

  • Increases production efficiency with up to 1,500 bottles per hour.
  • Saves energy through optimized power usage between 18KW and 22KW.
  • Versatile design supports multiple bottle sizes for diverse applications.
  • Seamlessly integrates into existing production lines, enhancing operational flexibility.
  • Built to handle various industries, from beverages to cosmetics, with consistent quality.

General


Applications
Carbonated beverages,Mineral water,Daily chemicals,Wide-mouth jars,Oils,Cosmetics,Pesticides,Pet cans,Juice
End products
Herbicide bottles,Olive oil bottles,Mineral water bottles,Soda bottles,Orange juice bottles,Peanut butter jars,Facial cleanser bottles,Shampoo bottles,Pet soda cans
Steps before
Purification,Preform Heating,Preform Loading
Steps after
Cooling,Bottle Inspection,Packing
Input ingredients
PET,plastic preforms,high pressure air
Output ingredients
PET plastic containers,PET bottles,mineral water bottles,carbonated drink bottles,juice bottles,pesticide bottles,oil bottles,daily chemical bottles,cosmetics bottles,wide-mouth jars,PET cans
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
200-300 BPH
Capacity (bottles/hour)
300 bph
Capacity (bottles/hour)
1500 bph
Automation
Semi Automatic
Power Consumption
18 KW
Power Consumption
22 KW
Max Bottle Height
<350 mm
Max Bottle Height
<420 mm
Max Bottle Diameter
<160 mm
Max Bottle Diameter
<180 mm
High Pressure Air Consumption
1.2 m³/min 30 kg
High Pressure Air Consumption
1.6 m³/min 30 kg
Weight
500 kg
Weight
800 kg

Operating Characteristics


Automation level
Semi Automatic
Batch vs. continuous operation
Batch
Air incorporation control
Manual Adjustment
Energy efficiency
18–22 kW
Changeover time
Manual
CIP/SIP
Manual cleaning
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Not specified
Max bottle height
<350mm for SBM-9A,<420mm for SBM-9B
Max bottle diameter
<160mm for SBM-9A,<180mm for SBM-9B
Weight
500kg for SBM-9A,800kg for SBM-9B
Control panel type
Not specified
Compact footprint
Not specified
Discharge method
Not specified

Custom Options


Blower and Oven Configuration
One blower + one oven for SBM-9A,Two blowers + one oven for SBM-9B
