Self-adhesive label applicator for cylindrical and shaped bottles

Simplify label application on varied bottle shapes with precise positioning and optional batch printing, ensuring efficiency and versatility in your packaging process.

Applies Labels to Various Container Shapes

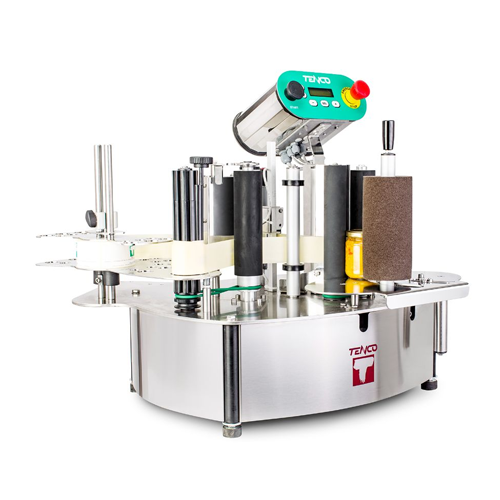

The Labeling Machine Et Pro from Tenco is a bench-top turntable unit designed to streamline container labeling in various industries, including beverage, cosmetic, and pharmaceutical. This semi-automatic machine excels in applying self-adhesive labels to a wide array of container shapes, such as cylindrical, square, and conical. With a maximum production rate of 600 containers per hour, it integrates seamlessly into your packaging line, reducing downtime and increasing efficiency. The machine supports additional functionalities, like batch printing and expiration date marking, with optional thermal transfer markers and ultrasonic sensors for transparent labels. It operates on an electric power supply with energy-efficient features such as compressed air consumption of just 20l/min for marking operations. The Et Pro is fully customizable based on sample containers and labels provided, ensuring precise label placement with a maximum deviation of ±3 mm. Made to withstand the rigors of industrial use, it’s adaptable for use with glass, PET, and rigid plastic materials, offering flexibility for various production needs.

Benefits

  • Increases production efficiency with a throughput of up to 600 labels per hour.
  • Ensures precise label application with a maximum error margin of ±3 mm.
  • Enhances operational flexibility by accommodating a variety of container shapes and materials.
  • Reduces manual intervention through customizable configuration based on your specific samples.
  • Minimizes energy usage with efficient power features, such as low compressed air consumption for marking.

General


Applications
Food,Beverage,Cosmetic,Chemical,Pharmaceutical
End products
Pill bottles,Sauce bottles,Shampoo bottles,Wine bottles,Spirit bottles,Jam jars,Cosmetic cream jars,Essential oil bottles,Detergent bottles
Steps before
Bottle sampling,Container preparation,Label design,Roll label preparation
Steps after
Packing,Batch printing,Expiration date printing
Input ingredients
self-adhesive labels,cylindrical containers,square containers,conical containers,rounded containers,bottles,jars,glass containers,PET containers,rigid plastic containers
Output ingredients
labeled cylindrical containers,labeled square containers,labeled conical containers,labeled rounded containers,labeled bottles,labeled jars,labeled glass containers,labeled PET containers,labeled rigid plastic containers
Market info

Technical Specifications


Production Capacity
600 p/h
Labelable Container Types
Cylindrical,square,rectangular,conical,hexagonal,octagonal,glass,PET,rigid plastic
Dimensions
770 x 570 x 750 mm h
Weight
35 kgs
Power Supply
Electric
Compressed Air Consumption
4 bar,20 l/min
Absorption
0.4 kW
Maximum Coil Diameter
280 mm
Reel Internal Diameter
76 mm
Maximum Paper Support Height
170 mm
Minimum Distance Between Labels
3 mm
Available Voltages
240V - 50Hz,110V - 60Hz

Operating Characteristics


Working mechanism
Bench-top turntable
Automation level
Manual / with accessory options
Label application types
Self-adhesive on cylindrical,square,conical,rounded containers
Batch compatibility
Customized on received samples
Maximum production rate
600 p/h
Compressed air consumption
4 bar,20l/min for marker
Customization options
Interchangeable bottle positioning plate

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Cylindrical,square,rectangular,conical,hexagonal,octagonal
Material compatibility
Glass,PET,rigid plastic
Container size and shape
Cylindrical,square,conical,rounded
Label placement accuracy
±3 mm

Physical Characteristics


Machine footprint
770 x 570 x 750 mm
Weight
35 kg
Control panel type
Bench-top turntable
Compressed Air Usage
4 bar,20l/min only for the marker
Maximum coil diameter
280 mm
Reel internal diameter
76 mm
Maximum paper support height
170 mm
Minimum distance between labels
3 mm
Available voltages
240V - 50Hz / 110V 60Hz

Custom Options


Control panel type
Standard / Customized
Bottle positioning plates
Cylindrical / Square / Shaped
Accessory kits available
Thermal transfer marker / Ultrasonic sensor
Customization with samples
Required for customization
