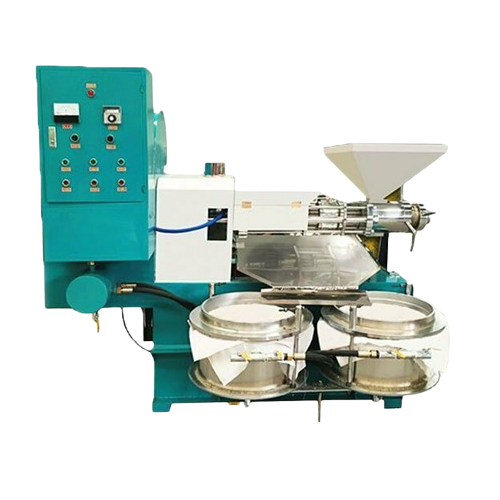

Screw oil press for edible oil extraction

Optimize your oil extraction process with this screw oil press, designed to efficiently extract high-purity oil from a variety of seeds and nuts, ensuring a reliable and continuous operation with minimal residue. Ideal for food processors seeking quality and versatility in oil production.

Extracts and Filters Edible and Essential Oils

The Screw Oil Making Machine from Zhengzhou Taizy Machinery Co., Ltd. is designed for the efficient extraction and filtration of edible and essential oils. It features a robust stainless steel construction with a unique pressing screw that optimizes oil yield. This machine caters to food processing companies and oilseed processing plants, handling a variety of raw materials such as peanuts, soybeans, and sunflower seeds. With a capacity ranging from 30kg to 450kg per hour, it accommodates both small and large-scale production needs.

The dual-mode pressing options—hot and cold—and its integrated filtration system ensure pure, residue-free oils suitable for direct consumption. Operating under a continuous process, it leverages an electric control system for precise temperature regulation and includes essential components like a vacuum filter and adjustable pressing thickness. This equipment supports seamless integration into existing production lines and promotes energy efficiency with its three-phase electric motor. Its stainless steel design offers superior corrosion resistance, ensuring longevity and reliability in diverse industrial environments. Customization options are available to meet specific operational requirements, supported by technical expertise from Taizy’s engineering team.

Benefits

  • Enhances oil yield efficiency with precision pressing screw technology.
  • Provides residue-free, consumable oils with integrated dual filtration system.
  • Offers versatility in oil extraction through hot and cold pressing modes.
  • Minimizes production costs with energy-efficient three-phase motor operation.
  • Adapts to various production scales with customizable capacity options.

General


Applications
Cottonseed oils,Edible oils,Seed oils,Soybean oils,Olive oils,Nut oils,Food processing,Rapeseed oils,Vegetable oils,Peanut oils,Sunflower oils,Essential oils
End products
Olive oil,Sunflower oil,Cottonseed oil,Sesame oil,Walnut oil,Rapeseed oil,Peanut oil,Hot-pressed oils,Cold-pressed oils,Soybean oil,Tea seed oil
Steps before
Preheating,Roasting,Inspection,Lubrication,Raw Material Preparation
Steps after
Filtering,Cooling,Oil Residue Adjustment,Dry Slag Removal
Input ingredients
soybeans,peanuts,cotton seeds,rapeseed,olives,sunflower seeds,sesame,tea seed,walnut kernels,beans
Output ingredients
edible oil,clean oil,filtered oil
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Material compatibility
Stainless steel
Raw material compatibility
Soybeans,peanuts,cotton seeds,rapeseed,olives,sunflower seeds
Motor power
2.2 kW - 22 kW
Capacity
30 kg/h - 450 kg/h
Dimension
1200x800x1160 mm - 2600x2100x1780 mm
Weight
230 kg - 1200 kg
Voltage
220V - 380V
Pressing types
Hot pressing,Cold pressing
Oil pressing rate
13%-70% depending on raw material
Residual oil rate of oil residue
≤7-8%
Composed parts
Electric control part,heating and pressing part,adjusting part,transmission part,vacuum filter oil part
Operating temperature range
150-200℃
Heating time before operation
20 minutes
Filtration stages
Two oil filters

Operating Characteristics


Working Mechanism
Screw press extrusion
Pressing Method
Hot pressing / Cold pressing
Preheating Time
20 minutes
Temperature Control
150-200℃
Pressing Temperature for Peanuts
180℃
Oil Residue Thickness Control
Adjustable
Oil Filtration
Two-stage filtration
Automation Level
Partial manual controls
Capacity
30kg to 450kg per hour
Vacuum Filtration
Vacuum pump system
Energy Supply
Two-phase / Three-phase electric

Material Compatibility


Abrasion resistance
High (due to stainless steel construction)
Biological compatibility
Yes,for edible oils
Cleanability
Easy,due to stainless steel material and oil filters
Corrosive resistance (e.g. acids)
Moderate (stainless steel)
Density/particle size
Varies by raw material (e.g.,soybeans,peanuts)

Physical Characteristics


Machine footprint
1200x800×1160 mm to 2600x2100x1780 mm
Weight
230 kg to 1200 kg
Material
Stainless steel
Heating method
Electric
Screw type
Single screw
Discharge method
Vacuum filtration system
Control panel type
Temperature control

Custom Options


Control panel type
Manual / Digital
Material
Stainless Steel
