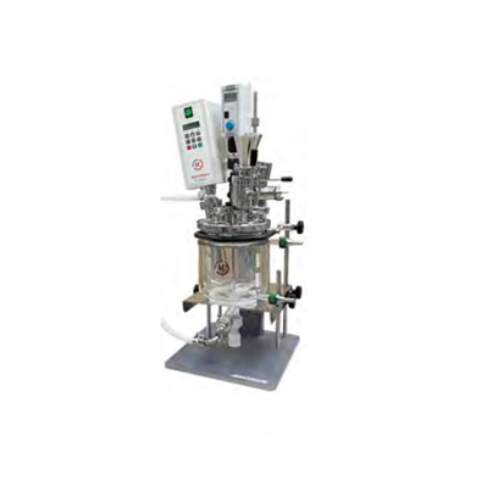

Scalable laboratory reactor for mixing and dispersing
Optimize laboratory-scale production with a versatile reactor designed for efficient mixing, homogenizing, and dispersing across various processes, ensuring precise control and high-quality results.
Mixes, Homogenizes, and Disperses Laboratory Samples
The REACTRON RT 2E from Kinematica AG is a versatile laboratory reactor designed for precise mixing, homogenizing, and dispersing applications. This system is distinguished by its modular construction, allowing customization with borosilicate glass or stainless steel vessels to meet specific process requirements. Ideal for R&D departments in pharmaceuticals and chemicals, it excels in processing liquids, slurries, and gases. Featuring a high-torque, maintenance-free gearbox and an anchor stirrer for macromixing, the reactor supports a wide range of disperser drives and generators. Capable of operating under vacuum up to 25 mbar, the REACTRON RT 2E ensures efficient mixing environments. With its robust construction, including a telescopic stand for ease of cleaning and accessibility, it integrates seamlessly into existing laboratory workflows. The device adheres to IEC/EN safety standards, offering reliable operation in controlled settings.
Benefits
- Ensures precise control over mixing and homogenizing for optimal sample consistency.
- Enhances lab efficiency with easy cleaning and quick component changes.
- Adapts to varied process conditions with customizable material and vessel options.
- Provides energy savings through high-torque transmission without additional power expenses.
- Operates under vacuum conditions up to 25 mbar for applications requiring inert atmospheres.
- Applications
- Chemicals,Food,Cosmetics,Life science,Pharmaceuticals
- End products
- Steps before
- Purification,Emulsification,Grinding,Mix preparation,Homogenization,Temperature control
- Steps after
- Filtration,Quality control,Sterilization,Packaging,Analysis,Distribution
- Input ingredients
- borosilicate glass,stainless steel,macro-mixing ingredients,materials for homogenization,anchor stirrer ingredients,standard dispersing aggregates,W-design aggregate,outside cutting blades
- Output ingredients
- mixed solution,homogenized mixture,dispersed materials,processed ingredients,crushed and micro-mixed materials
- Market info
- Min. Volume
- 1000 ml
- Max. Volume
- 2000 ml
- Applicable aggregates diameter
- ø 30 mm to ø 36 mm
- Vacuum level without homogenizer
- Up to 25 mbar (a)
- Vacuum level with homogenizer
- Up to 250 mbar (a)
- Supply voltage
- 90 – 230 V ± 10%,50Hz / 60Hz
- Max. relative density
- 80% storage / 80% operation
- Operating temperature
- Standard max. 90°C / On request >120°C
- Protection class acc. to DIN
- IP 20
- EMC standards
- IEC / EN 61000-6-2 / EN 61000-6-3
- Safety standard
- IEC / EN 61010-2-51
- Working Mechanism
- Batch/Inline
- Integrated Steps
- Homogenizing,Mixing
- CIP/SIP Compatibility
- CIP 121°C / SIP 135°C
- Vacuum Capability
- Up to 25 mbar (a) without homogenizer / Up to 250 mbar (a) with homogenizer
- Changeover Flexibility
- Modular Design
- Automation Level
- Manual / PLC / SCADA
- Batch vs. Continuous Operation
- Batch
- Cleaning Method
- Integrated (Electro-) Telescopic Stand
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material type
- Borosilicate glass / Stainless Steel 316L
- Temperature resistance
- Up to 120°C
- Vacuum compatibility
- Up to 25 mbar (a) without homogenizer
- CE marking
- Yes
- FDA materials
- Yes
- Safety standard
- IEC/EN 61010-2-51
- EMC standards
- IEC/EN 61000-6-2 / EN 61000-6-3
- Vessel Material
- Borosilicate glass / Stainless steel 316L
- Vessel Capacity
- 5 liters
- Footprint
- Compact with telescopic stand
- Stirrer Type
- Anchor stirrer
- Outlet Valve
- Bottom outlet valve
- Vessel Cover
- Stainless steel 316L with Tri clamp connections
- Protection Class
- IP 20
- Min. Volume
- 1000 ml
- Max. Volume
- 2000 ml
- Stand Type
- Telescopic stand with electrical hub
- Vessel Material
- Borosilicate glass / Stainless steel
- Vessel Design
- Single wall / Double wall
- Stirrer Design
- Anchor stirrer
- Stand Type
- Telescopic stand with electrical hub
- Power Supply
- 90 – 230 V ± 10%,50Hz/60Hz
- Operational Temperature
- Standard max. 90°C / On request >120°C
- Vacuum Capability
- Up to 25 mbar (a) without homogenizer / Up to 250 mbar (a) with homogenizer
- Aggregate Change Mechanism
- Click,Go
