Rotating cabinet for homogeneous cryogenic cooling

Achieve uniform and efficient cooling or freezing for diverse food products with our advanced cryogenic batch solution, ideal for maintaining consistency and enhancing productivity across discontinuous operations.

Ensures Homogenous Freezing and Cooling

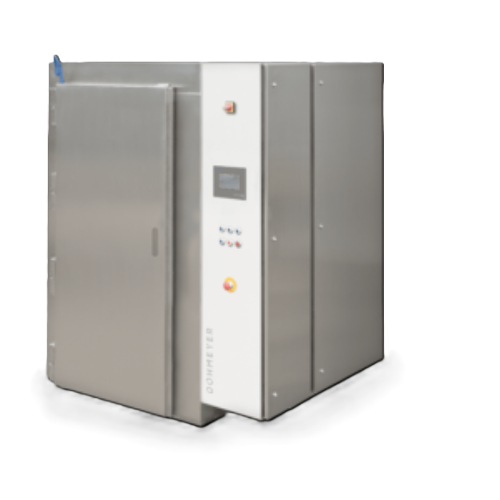

The Rotating Cabinet from Dohmeyer is a state-of-the-art cryogenic batch freezer designed to deliver uniform cooling and freezing for a variety of food products. Utilizing liquefied carbon dioxide (CO2) or liquefied nitrogen (LIN), this freezer excels in efficient temperature reduction via controlled gas injection and evaporation, with fans ensuring even distribution. Ideal for meat, fish, prepared meals, and bakery products, it facilitates crust freezing for easier slicing and boosts overall productivity by shortening cycle times compared to fixed trolley freezers. Constructed with high-performance thermal insulation, the cabinet offers a customizable design tailored to your specific application needs, while its vacuum-insulated floor minimizes thermal loss. Seamless integration for batch operations enhances throughput, making it a reliable choice for food manufacturers, fish processors, meat producers, and bakery producers seeking optimal cooling solutions.

Benefits

  • Enhances product quality through even temperature distribution for homogenous freezing.
  • Increases productivity with shorter cycle times compared to fixed trolley systems.
  • Customizable design accommodates specific requirements, ensuring versatile application across different product types.
  • Reduces thermal loss with advanced vacuum insulation, improving energy efficiency.
  • Facilitates seamless integration into existing production lines for streamlined operations.

General


Applications
Cured meats,Prepared meals,Meat,Smoked products,Bakery products,Fish
End products
Bread rolls,Smoked mackerel,Turkey breast,Bacon strips,Frozen lasagna,Frozen pizza,Smoked salmon,Fish fillets,Sliced ham,Frozen croissants
Steps before
Preparation,Slicing,Seasoning
Steps after
Packing,Storage,Distribution
Input ingredients
meat,fish,prepared meals,bakery products,cured meat,smoked products
Output ingredients
homogeneous cooled products,crust frozen products,perfectly homogeneous cured meat,frozen fish,cooled prepared meals,cooled bakery products
Market info
Dohmeyer is renowned for manufacturing advanced cryogenic equipment, specializing in ultra-low temperature applications for various industries, including pharmaceuticals and food processing. They are recognized for their innovation, quality, and customer-focused engineered-to-order solutions.

Technical Specifications


Cooling medium
Liquefied carbon dioxide (CO2) or liquefied nitrogen (LIN)
Batch vs. continuous
Batch
Thermal insulation
140 mm high performance
Floor insulation
26 mm vacuum insulated
Automation
Rotating platform mechanism

Operating Characteristics


Working Mechanism
Rotating platform for homogeneous cooling
Batch vs. Continuous Operation
Batch
Cooling Method
Cryogenic with CO2 or LIN
Temperature Control
Controlled injection of cryogenic gas
Cooling Uniformity
Ensured by rotating trolley
Energy Source
Latent heat of evaporation
Production Application
Food industry,cured meat,fish,smoked products
Process Cycle Time
Shorter than fixed trolley freezers
Automation Level
Not specified
Integrated Steps
Not specified
Changeover Time
Not specified
Cleaning Method
Not specified

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product homogeneity
High
Suitable applications
Meat,fish,bakery,prepared meals

Physical Characteristics


Machine footprint
Standard or tailor-made dimensions
Basket/Platform design
Rotating trolley
Wall insulation thickness
140 mm
Floor insulation thickness
26 mm
Entrance design
Ramp integrated into floor

Custom Options


Rotating Platform
Yes,for homogeneous cooling
Trolley Locking Mechanism
Yes,ensures product stability
Insulation Thickness
140 mm high performance thermal insulation
Floor Design
Low (26mm) with integrated entrance ramp
Tailor Made Design
Custom dimensions and specifications available
