Rotary weight filler for edible oil

Optimize your liquid product filling with precise weight control, ensuring high accuracy and minimal waste across production lines.

Fills and Weighs Liquid Products Accurately

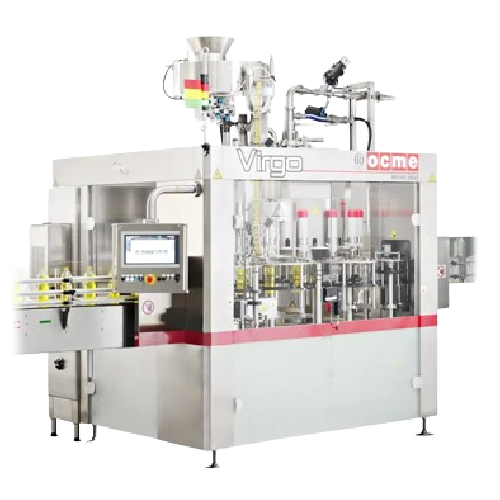

The Virgo Rotary Weight Filler from OCME offers precision filling solutions tailored for edible oil and liquid product producers. Its standout feature is the highly accurate weight-based filling system, leveraging advanced electronics developed over two decades. Designed for continuous, high-speed operations, Virgo excels in handling a range of products from olive oil to motor oil. This equipment rejects out-of-tolerance containers, ensuring only conforming products continue in the line. The machine’s design incorporates height adjustment for varying bottle sizes and integrates seamlessly into existing production lines with its bottle orienting and nozzle control capabilities. Automatic lubrication and nitrogen insertion enhance operational efficiency, while a dedicated control unit safeguards reliability and production data integrity. Built with stainless steel and tempered glass, Virgo is robust and easy to maintain, minimizing downtime and ensuring compliance with industry standards.

Benefits

  • Ensures high filling accuracy to reduce product loss.
  • Increases production efficiency with high-speed, continuous operation.
  • Provides flexibility in handling various container sizes with automatic height adjustment.
  • Minimizes waste and non-conforming products using an integrated rejection system.
  • Enhances operational safety and data monitoring through a dedicated control unit.

General


Applications
Food,Beverage,Edible oil,Lubricants
End products
Ketchup,Olive oil,Sunflower oil,Vegetable oil,Salad dressings,Iced tea,Soy sauce,Hydraulic oil,Fruit juices,Transmission fluid,Motor oil,Canola oil,Flavored water
Steps before
Blow Moulding,Container Manufacturing
Steps after
Cap Sealing,Packing,Palletizing
Input ingredients
edible oil,PET bottles,Glass bottles
Output ingredients
filled edible oil containers,rejected containers
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Filling accuracy
±0.5%
Container type
Glass / PET
Automation
Weight-based
Nozzle type
Motorized
Lubrication
Automatic centralized
Height adjustment
Automatic
Pressurized product tank
0.4 bar
Nitrogen insertion
Available

Operating Characteristics


Filling accuracy
±0.1 g to ±5 g
Automation level
PLC-controlled
Changeover time
Complete format changeover
Cleaning method
CIP / Manual
Batch vs. continuous operation
Inline Continuous
Control system
Machine control and supervisor PC


Metrical certification
MID 2004/22/CE

Physical Characteristics


Compact footprint
Extremely compact machine
Material construction
Stainless steel and tempered glass perimeter guards
Tank capacity
External tank for nozzles discharge with 100 L capacity
Handling type
Neck or body handling

Custom Options


Compact footprint
Extremely compact machine
Control panel type
Machine control and supervisor PC
Lubrication system
Automatic centralized lubrication with pump
Height adjustment
Automatic height adjustment for filling and capping heads
Nozzle type and control
Motorized nozzle with configurable shutter positions
