Rotary vacuum filter for wine filtration

Enhance your wine production with efficient filtration of grape must and wine lees, reducing air intake and increasing drying surface for superior output in your processing line.

Filters and Clarifies Grape Must and Wine

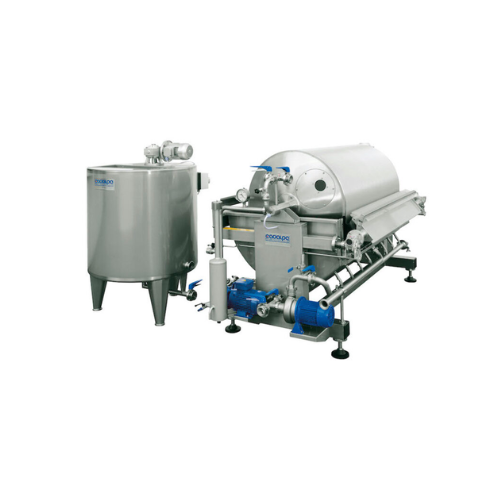

The C 26 Rotary Vacuum Filter from Cadalpe is designed for winemakers and beverage producers seeking efficient filtration and clarification of grape must and wine. This single cavity filter features a unique design that minimizes unused filter area, reducing air intake and increasing drying surface for higher throughput. The filter uses a hydrodynamic system to maintain a homogeneous pre-cake suspension, along with a reversible positive displacement pump for consistent pulp input. The filtered fluid is extracted using a submersed electric pump, while an impeller regulates pulp deposit on the drum surface. A thermostatic control ensures low water consumption for the vacuum pump’s liquid ring, making the C 26 both energy-efficient and environmentally friendly. Entirely constructed from stainless steel, it is particularly effective in the wine-making sector for filtering grape must and recovering liquid from dregs. Its construction also allows for seamless integration into existing production lines, enhancing process efficiency and product quality.

Benefits

  • Increases filtration efficiency with minimal air intake, maximizing output.
  • Reduces water usage in the vacuum pump, promoting eco-friendly operations.
  • Enhances product quality through precise pulp deposit control on the drum surface.
  • Minimizes maintenance with a robust stainless steel construction.
  • Integrates seamlessly into existing wine production lines, optimizing processing continuity.

General


Applications
Grape must,Wine-making,Beverage industry,Wine
End products
Filtered must,Clarified wine,Wine lees,Wine dregs
Steps before
Enzymatic treatment,Decanting,Centrifugal processing,First racking
Steps after
Recovery of liquid,Dregs filtration
Input ingredients
grape must,dregs from decanting,centrifugal processing,first racking
Output ingredients
filtered grape must,recovered liquid part
Market info
Cadalpe is renowned for designing and manufacturing custom-engineered equipment for the wine, beverage, and food industries, specializing in advanced filtration, distillation, and heat exchange technologies, earning a reputation for innovation and quality.

Technical Specifications


Material
Stainless Steel
Drying Surface
Increased drying surface
Pre-cake Suspension System
Hydrodynamic System
Pulp Input
Electric Reversible Positive Displacement Pump
Filtered Fluid Removal
Submersed Electric Pump
Pulp Deposit Control
Regulated by Impeller
Water Consumption Control
Thermostatic Control for Vacuum Pump Liquid Ring
Portability
Available with Wheels

Operating Characteristics


Working mechanism
Rotary vacuum with cyclical processing
Precoat filter aiding
Yes
Drying surface
Increased output
Hydrodynamic system
Keeps pre-cake suspension homogeneous
Pulp input
Electric reversible positive displacement pump
Pulp deposit regulation
Impeller
Vacuum pump control
Thermostatic control
Batch vs. continuous operation
Cyclical (Batch)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Wine-making Sector
Grape Must Filtering
Wine Processing
Recovery of Liquid from Dregs

Physical Characteristics


Construction material
Stainless Steel
Discharge method
Submersed electric pump
Feed method
Electric reversible positive displacement pump
Cooling method
Low water consumption for vacuum pump liquid ring
Mobility
Available with wheels

Custom Options


Material type
Stainless steel
Pump type
Electric reversible positive displacement pump
Impeller regulation
Yes
Mobility
Model available with wheels
