Rotary dischargers for powders and granules

Prevent production halts with this solution designed for efficient discharge of challenging powders and granules from bins and silos, ensuring a steady material flow to your processing machinery.

Facilitates Consistent Material Discharge and Feeding

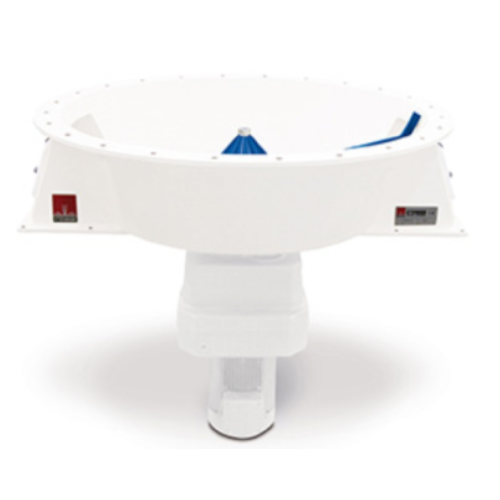

The Rotary Bin Discharger from Ottevanger Milling Engineers is engineered to seamlessly manage the discharge of powders and granules, enhancing the efficiency of storage and processing operations. Its robust construction includes a fully enclosed cylindrical steel housing with specially shaped blades driven by a motor reducer, ensuring consistent material flow for feed mills and grain processing plants. The electro-pneumatically operated discharge slide is ideal for materials prone to uncontrolled discharge, providing precise feed to processing machines and weighing hoppers. With options for stainless steel housing and an ATEX motor, it is well-suited for demanding environments, such as animal feed, pet food, and soybean processing facilities. Its easy integration into continuous or semi-automated systems provides operational flexibility, while supporting diverse applications ranging from flour and cattle feed to soybean oil production.

Benefits

  • Ensures continuous production by preventing material flow interruptions from storage silos.
  • Reduces maintenance downtime with an easily accessible design.
  • Enhances operational safety with options for ATEX-certified components.
  • Supports diverse processing needs with customizable configurations for different materials.
  • Increases efficiency in feed and grain production lines with consistent discharge rates.

General


Applications
Animal feed,Raw materials,Pet food,Granules,Soybean processing,Aqua feed,Powders,Premix,Grain storage,Compound feed
End products
Premix vitamin blends,Dog kibble,Pvc powder,Flour,Fish pellets,Poultry feed,Cattle feed pellets,Soybean oil,Silica gel granules,Barley storage
Steps before
Storage,Product intake,Grinding
Steps after
Weighing,Mixing,Pelleting
Input ingredients
powders,granules,materials from silos,products with poor flow characteristics
Output ingredients
discharged materials,regular feed to processing machines,feed to weighing hoppers
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Drive Power
7.5 kW / 11 kW
RPM
114 RPM
Housing Material
Steel / Stainless Steel
Discharge Control
Electro-pneumatically operated
Application Type
Powders / Granules
Capacity
Not specified
Flange Type
Attached to bin outlet

Operating Characteristics


Operation mode
Discharge for powders/granules
Motor reducer type
Flange attached
Material flow control
Electro-pneumatically operated discharge slide
Automated discharge control
Available
Blade design
Specially shaped blades
Uncontrolled discharge prevention
Yes
Integration capability
Securing flange to bin outlet

Material Compatibility


Corrosive resistance
Stainless steel housing
Density/particle size compatibility
Powders or granules with poor flow characteristics
Abrasive materials
Not specified
Temperature resistance
Not specified

Physical Characteristics


Housing Material
Cylindrical Steel,Stainless Steel (option)
Discharge Method
Electro-pneumatically operated discharge slide
Attachment Method
Flange
Rotor Type
Specially shaped blades
Motor Type
Motor reducer
RPM
Varies (930,1120,1500 RPM)
Drive Type
Motor-driven
Footprint
Compact
Customization Options
Multiple outlet,ATEX motor

Custom Options


Stainless steel housing
Available
ATEX motor
Available
Multiple outlet
Available
