Rotary cone sample divider for precise subsample division
Achieve unmatched precision in sample division with minimal waste, ensuring uniformity and reliability of subsamples for accurate downstream analysis and quality control.

Precisely Divides and Distributes Diverse Sample Materials

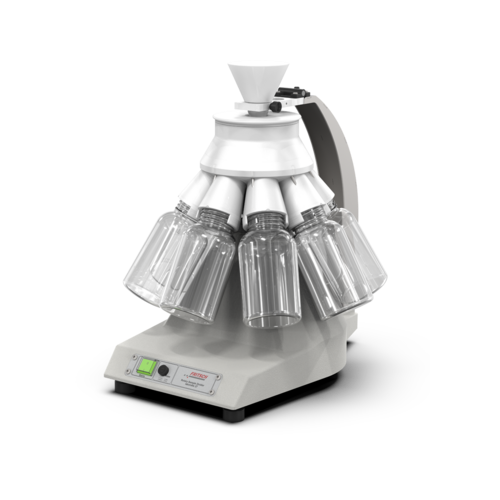

The Rotary Cone Sample Divider LABORETTE 27 from FRITSCH is designed for laboratories and research facilities requiring precise sample division. It operates with a centric sample feeding mechanism, directing materials onto a rotating cone that divides them into up to 30 channels, ensuring consistent chemical and physical properties in each subsample with 99.9% accuracy. This device is ideal for applications in pharmaceutical, chemical, and cement industry materials, producing fine pharmaceutical granules, vitamin supplements, and industrial additives.
Featuring a compact design and maintenance-free drive motor, the LABORETTE 27 supports continuous operation at up to 3,000 division steps per minute. It can handle both dry samples and suspensions without instrument modification. The unit allows integration with the Vibratory Feeder LABORETTE 24 and diverse vibrating equipment, enhancing its versatility in sample preparation workflows. Optional dividing heads made of stable materials like anodized aluminum and PTFE-coated aluminum ensure suitability for abrasive or aggressive samples.
Cleaning is simplified through a removable dividing head, and various funnel sizes are available to match different particle sizes. The durable cast aluminum construction and recyclable materials ensure longevity and environmental consideration. The LABORETTE 27 is an essential tool for laboratories aiming to obtain reliable analytical results through precise and representative sample division.
Benefits
- Achieves high precision and consistency in sample division for reliable analytical results.
- Minimizes sample handling and contamination with easy-to-clean, detachable components.
- Supports diverse sample types, including liquids, solids, and slurries, enhancing operational versatility.
- Integrates seamlessly into existing workflows, improving efficiency and throughput.
- Offers material versatility with durable construction options to withstand abrasive and aggressive environments.
- Applications
- Sodium chloride,Supplements,Animal feed,Cement industry materials,Pharmaceutical powder,Potassium chloride,Minerals,Salt,Refuse derived fuels
- End products
- Potassium chloride tablets,Table salt,Livestock nutritional pellets,Vitamin supplement tablets,Mineral powder mixes,Cement additives,Fine pharmaceutical granules,Alternative fuel pellets,Industrial sodium chloride
- Steps before
- Grinding,Sieving,Milling,Sample Collection,Initial Sample Preparation
- Steps after
- Analytical Testing,Chemical Analysis,Quality Assurance,Reproducibility Testing
- Input ingredients
- sample material,dry samples,liquid samples,suspensions,concrete,animal feed,plastic,wood,shredded waste,salt,sodium chloride,potassium chloride
- Output ingredients
- representative subsamples,chemically identical subsamples,physically identical subsamples
- Market info
- Fritsch is renowned for manufacturing high-quality, engineered-to-order laboratory instruments for sample preparation and particle sizing in research and industrial laboratories, with a strong reputation for precision, innovation, and reliability.
- Division accuracy
- Up to 99.9%
- Division steps per minute
- Up to 3,000
- Division ratios
- 1
- Rotational speed
- 100 rpm
- Sample capacity
- Up to 4,000 ml
- Collecting vessel size
- 15 ml to 500 ml
- Material of dividing heads
- POM plastic,anodised aluminum,PTFE-coated aluminum
- Drive motor
- Maintenance-free with slipping clutch
- Housing material
- Cast aluminum
- Sample division accuracy
- Up to 99.9%
- Division steps per minute
- Up to 3,000
- Division method
- Centrifugal rotating cone
- Division ratios
- Variable (e.g.,1
- 1
- 10
- 1
- 30)
- Sample volume capacity
- Few ml to 4,000 ml
- Operation type
- Manual / Automatic
- Drive motor type
- Maintenance-free with slipping clutch
- Rotational speed
- 100 rpm
- Cleaning method
- Easy cleaning with removable dividing head
- Material housed
- Heavy-duty cast aluminium
- Combination capability
- Compatible with Vibratory Feeder LABORETTE 24
- Cleanability
- Easy cleaning due to removable dividing head
- Density/particle size
- Up to 4,000 ml
- Biological compatibility
- Food-safe materials
- Machine footprint
- Compact
- Dividing head
- Removable
- Division steps per minute
- Up to 3,000
- Division ratio options
- 1
- Housing material
- Cast aluminium
- Glass collecting vessels volume
- 15 ml to 500 ml
- Sample bottle capacity
- 250 ml and 500 ml
- Funnel sizes
- 5 mm,10 mm,15 mm,22 mm
- Material for dividing heads
- POM plastic,anodised aluminium,PTFE-coated aluminium
- Division ratios
- 1
- 1
- 10
- 1
- 30
- Dividing head material
- POM plastic / Anodised aluminium / PTFE-coated aluminium
- Funnel diameter
- 5 mm / 10 mm / 15 mm / 22 mm
