Roller mills for high-demand crushing applications

Optimize your production line with versatile roller mills designed to handle demanding crushing applications efficiently, delivering precisely controlled particle size reduction for consistent output quality.

Crushes and Reduces Particle Size

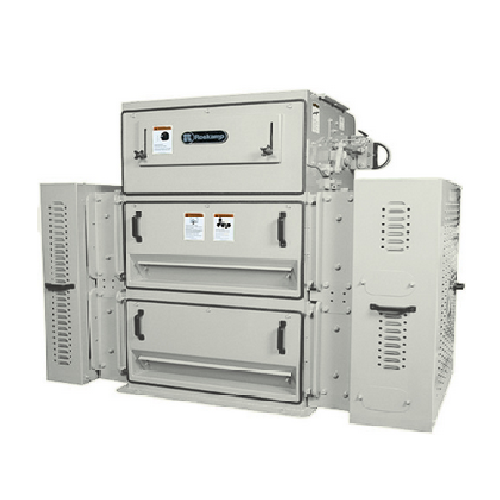

The Roskamp 1200 Series Roll Crushers are engineered for industrial applications requiring precise crushing and particle size reduction. With their unique bearing slides and multiple roll configurations, these crushers provide consistent production quality. Ideal for industries such as oilseed processing and biomass, they effectively transform materials into cattle feed pellets, soybean oil, and wood pellets. Operating at a maximum of 225 horsepower, they ensure robust, high-speed performance in continuous, fully automated processes. Featuring self-aligning, double-row spherical roller bearings and options for chilled cast iron or alloy steel rolls, the machines are designed for durability and efficient material processing. Integration into production lines is seamless with optional full-width, heavy-duty magnets and remote roll adjustment. Maintenance is simplified through quick access to all components, allowing for minimal downtime. Customization options, such as single or triple pair roll models, enable tailoring to specific industrial needs.

Benefits

  • Enhances production efficiency with customizable roll configurations for precise particle sizing.
  • Reduces operational costs by ensuring continuous, fully automated crushing processes.
  • Prolongs equipment lifespan through robust construction with corrosion-resistant materials.
  • Minimizes maintenance downtime with easily accessible components and straightforward cleaning procedures.
  • Supports diverse industrial applications from animal feed to biomass, meeting specific processing needs.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Dog food kibbles,Meat and bone meal,Wood pellets,Hemp protein powder,Ethanol fuel,Flour,Fish feed pellets,Cattle feed pellets,Dried hops,Soybean oil
Steps before
Grinding,Particle Size Reduction,Oilseed Preparation,Cracking
Steps after
Cooling,Pelleting,Briquetting,Steam Flaking
Input ingredients
grain,corn,wheat,soybeans,oats
Output ingredients
ground grain,flour,crushed corn,rolled oats,processed soybeans
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Roll Diameter
12 inches
Roll Design
Two-,four-,six-roll designs
Horsepower Range
30 to 225 HP
Bearing Type
Self-aligning,double-row spherical roller bearings
Roll Adjustment
One-point manual roll adjustment via machine jack screws
Roll Corrugation and Speed Differential Ratios
Available for all applications
Roll Protection
Belleville spring roll protection
Construction Material
Carbon steel construction
Drive Type
V-belt drive,separate inter-roll drives
Motor Configuration
C-flow or Z-flow motor configuration
Weight
6,850 lbs to 20,600 lbs depends on the model
Dimension
Height
Feed Gate Control
Full-feature feed gate and roll gap control
Sample Inspection
Sample inspection ports
Automation
Full automation adaptable
Cooling System
Axial fan for air circulation over drive components

Operating Characteristics


Roll diameter
12 inches
Horsepower range
30 to 225 HP
Automation level
Full automation
Roll design
Two,four,and six-roll designs
Roll protection
Belleville spring roll protection
Roll adjustment
Manual and remote with digital readout
Cooling
Fast roll with axial fan for air circulation
Drive type
Left- or right-side drive
Inter-roll drives
Separate inter-roll drives on each bank of rolls

Material Compatibility


Abrasion resistance
Yes
Cleanability
Full wash-down (S2) components available
Corrosive resistance (e.g. acids)
Optional stainless steel (S1) components
Density/particle size
Not specified

Physical Characteristics


Machine Footprint
Height
Roll Diameter
12 inches
Number of Rolls
Two,four,or six-roll designs
Construction Material
Steel roll housing,Carbon steel construction,Stainless steel components (optional)
Roll Adjustment
One-point manual adjustment,Precise,repeatable hand wheel adjustment
Discharge Method
Sample inspection ports
