Roll compactor system for dry granulation

Achieve consistent tablet hardness and increased powder density with a versatile compaction system designed for efficient dry granulation, ensuring uniformity and scalability in your production process.

Compacts and Granulates Powders for Consistent Density

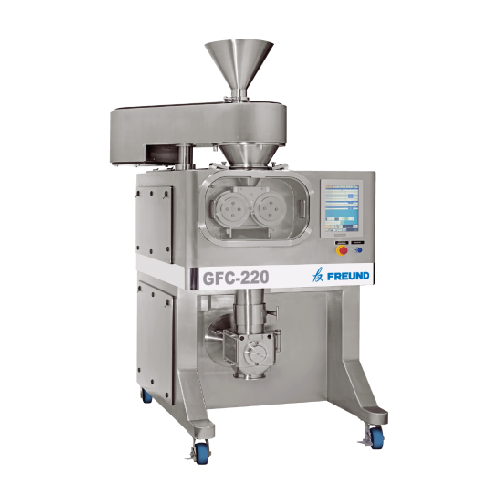

The GFC-220 GRANUFORCE™ by Freund-Vector is an ETO roller compactor designed for pharmaceutical, biotech, chemical, and food industries. It specializes in densifying and granulating powders, ensuring uniformity and enhanced material density. Utilizing a cantilevered roll design with vertical tapered feed screws, it processes 1 to 30 kg/hr, ideal for applications like lactose-based tablets and vitamin supplements. The system integrates seamlessly into continuous production lines, supported by a 12″ touchscreen control for precise roll gap and force adjustments. Optional inline PAT monitoring optimizes particle size distribution. Engineered with GMP compliance in mind, it features easy-clean cantilevered rolls and Smart-Safe™ containment for operational safety.

Benefits

  • Enhances product consistency by maintaining uniform compaction force.
  • Optimizes material handling with efficient feed screw designs, reducing waste.
  • Facilitates scalability from pilot to full production with modular design.
  • Improves worker safety through advanced containment options.
  • Streamlines cleaning and maintenance, minimizing operational interruptions.

General


Applications
Vitamins,Supplements,Fine chemicals,Granulation materials,Nutraceuticals,Pharmaceutical powder
End products
Vitamin c tablets,Probiotic capsules,Pharmaceutical grade powders,Calcium tablets,Herbal extracts,Protein powder blends,Vitamin d granules,Lactose-based tablets,Amino acid supplements,Dietary supplements
Steps before
Grinding,Powder Mixing,Material Feeding,De-Aeration
Steps after
Milling,Sieving,Particle Size Distribution Analysis,Packaging
Input ingredients
powdered material,lactose,avicel blend
Output ingredients
uniform compacted sheets,consistent hardness,increased density
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Capacity
1 - 30 kg/hr
Roll Width x Diameter
31 x 200 mm
Roll Speed
2 - 17 RPM
Maximum Roll Force
51.6 kN
Particle Size Distribution
Inline PAT Monitoring Optional
De-Aeration Design
Vertical Hopper and Screw
Roll Gap Control
Laser Control Option
Automation
Automated Control System
Data Handling System
21 CFR Part 11
Roll Compaction Force
Constant
Roll and Screw Speeds
Adjustable
Mill Speed
Optional
Amp and Watt Displays
Rolls and Screw
Containment Level
5µg/m³

Operating Characteristics


Working mechanism
Densification and dry granulation
Integrated steps
PAT monitoring,inline de-aeration
Batch vs continuous operation
Continuous
Automation level
Laser Roll Gap Control,Automated Control System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Feed type
Powder

Physical Characteristics


Roll Design
Cantilevered
Feed Screw System
Vertical Tapered

Custom Options


Control panel type
Color Touchscreen
