Refrigerated vacuum cold trap for lab applications

Protect your vacuum pumps from harmful vapors while reducing operating costs with a space-saving, benchtop cold trap designed for effective vapor condensation and dehydration.

Traps Condensable Vapors in Vacuum Systems

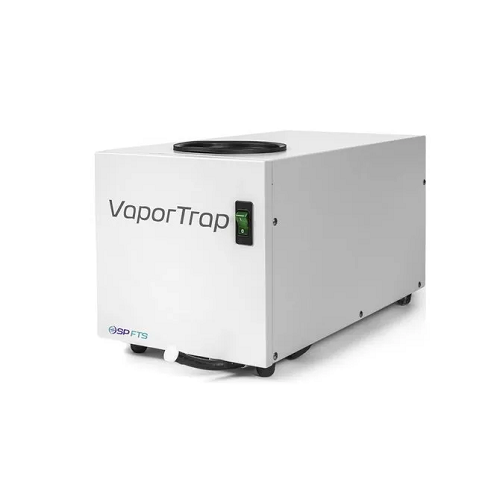

The FTS Vapor Trap is an engineered solution from SP Industries, designed to enhance vacuum system efficiency. This refrigerated cold trap employs mechanical refrigeration, eliminating the need for dry ice and liquid nitrogen, while ensuring efficient vapor trapping. Constructed from stainless-steel, the Dewar design traps condensable vapors with freezing points higher than its operating temperature, extending vacuum pump life and reducing maintenance costs.

Ideal for biopharmaceutical, fine chemical, and coating material applications, the trap is essential for producing monoclonal antibodies, lyophilized vaccines, and parylene conformal coatings. Capable of handling vacuum pumps up to 250 liters/minute, it integrates seamlessly into benchtop operations, offering -50°C or -90°C configurations with capacities of 2, 4, or 8 liters to suit specific research needs.

The compact design saves laboratory space, while its simple digital interface ensures user-friendly operation. This equipment aligns with stringent industry standards, providing reliable performance for pharmaceutical manufacturers, life sciences companies, and research laboratories.

Benefits

  • Extends vacuum pump lifespan by preventing vapor contamination.
  • Minimizes operational costs without the need for expendable refrigerants.
  • Optimizes laboratory space with compact, benchtop-friendly design.
  • Enhances process efficiency with customizable temperature and capacity options.
  • Ensures user convenience with straightforward digital controls.

General


Applications
Biopharmaceuticals,Vacuum equipment components,Coating materials,Fine chemicals
End products
Parylene conformal coatings,Lyophilized vaccines,Monoclonal antibodies,Vacuum-sealed components,Catalyst precursors
Steps before
Gas Stream Preparation,Chemical Vapor Deposition Setup,Parylene Coating Preparation
Steps after
Vacuum Pump Maintenance,Vacuum Oven Operation,Dryer Integration,Sample Analysis
Input ingredients
harmful vapors,condensable vapors,vapor streams
Output ingredients
trapped condensable vapors,protected vacuum pumps,cooled vapor streams
Market info

Technical Specifications


Capacity
2-,4-,and 8-liter
Cooling temperature
-50°C / -90°C
Vacuum pump compatibility
up to 250 liters/minute or 9 standard cubic feet/minute

Operating Characteristics


Working Mechanism
Mechanical Refrigeration
Temperature Range
-50°C to -90°C
Batch vs. Continuous Operation
Batch
Automation Level
Digital Temperature Readout
Integration Options
Vacuum Oven,Dryer
Energy Efficiency
Energy-saving Operation
Capacity Variants
2-,4-,8-liter

Material Compatibility


Stainless Steel
Stainless-steel Dewar
Compatible with Vacuum Pumps
up to 250 liters/minute

Physical Characteristics


Compact footprint
Benchtop design
Condenser capacity
2-,4-,and 8-liter configurations
Operating temperature
-50°C or -90°C
Material of construction
Stainless steel Dewar

Custom Options


Capacity
2-,4-,8-liter
Compact footprint
Benchtop design
