Rapid gummy channel counter

Ensure accurate gummy counts and streamline your production process with a solution designed to untangle and handle gummy products efficiently before they reach the counting phase.

Untangles and Counts Gummies Efficiently

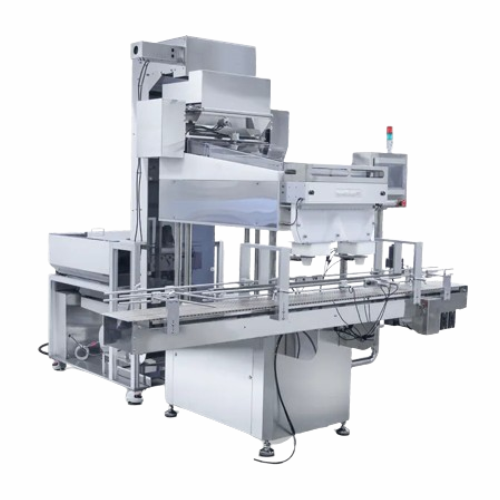

The RC90.18.2G2 from GummyTech is an engineered solution designed for efficient gummy production. Featuring a floor-level bulk feed hopper and cleated elevator, this channel counter untangles and organizes candies before reaching the counting head, which accurately processes up to 3,600 gummies per minute. Ideal for confectionery and food industries, it supports a variety of end-products such as gummy bears and jelly beans. The machine operates continuously with high-speed integration into existing production lines, underpinned by a compact design with dimensions of 3000 W x 1900 H x 1250 D. It requires 6-7 kg/cm² air pressure and a 220V electrical supply while consuming 1.2 kW. Easy to maintain, this counter is a robust addition for any high-volume candy manufacturing facility, backed by customization options and engineering support to meet specific operational requirements.

Benefits

  • Increases efficiency by untangling gummies before counting, reducing manual intervention.
  • Supports high-speed production lines, processing up to 3,600 gummies per minute.
  • Compact and robust build aids in seamless integration into existing setups.
  • Reduces operational costs with low air and power consumption.
  • Facilitates diverse product handling, suitable for a wide array of gummy types.

General


Applications
Sweets,Confectionery,Gummies
End products
Gummy bears,Gelatin-based sweets,Fruit snacks,Jelly beans,Chewy candy
Steps before
Bulk Feeding,Untangling Gummies
Steps after
Counting,Packing
Input ingredients
bulk gummies,untangled gummies
Output ingredients
counted gummies,3g gummies
Market info

Technical Specifications


Output (Gummies/min)
Maximum 3,600 (3g)
Machine Weight
950 Kg
Machine Dimensions
3000 W x 1900 H x 1250 D
Air Requirements
6-7 kg/cm²
Electrical
220V / 1ph / 60 Hz
Power Rating
1.2 kW
Number Of Tracks
18 (2x9)

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Weight
950Kg
Machine Dimensions
3000 W x 1900 H x 1250 D
Feed Method
Floor Level Bulk Feed Hopper
Discharge Method
Cleated Elevator
Number Of Tracks
18 (2x9)

Custom Options


Control panel type
Standard / Customized
Integration possibilities
Production Line Integration
