Pulverizing mill for coal processing

Achieve efficient fuel preparation with precision pulverization for consistent energy production, optimizing solid fuel handling by integrating drying, grinding, and classifying—a critical step for maintaining consistent combustion in power generation facilities.

Pulverizes and Classifies Solid Fuels Efficiently

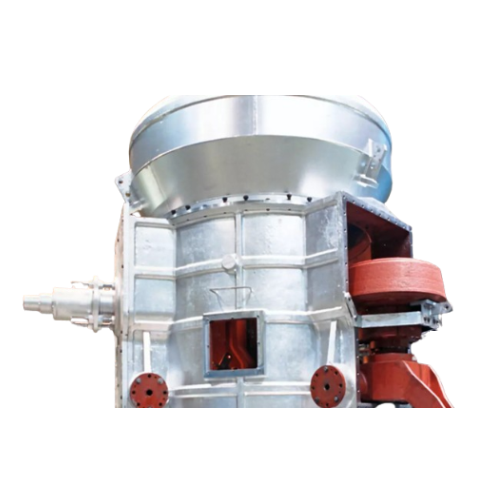

The Raymond Bowl Mill from Schenck Process is a high-efficiency vertical roller mill designed for the seamless pulverizing, drying, and classifying of solid fuels such as coal and petroleum coke. This equipment stands out due to its ability to handle a variety of fuels with moisture content up to 40%, making it ideal for coal-fired and biomass power plants. The bowl mill system operates on a continuous basis, ensuring reliable high-speed processing of materials into finely pulverized fuel, optimizing combustion performance. Equipped with dynamically adjustable classifiers and turbine systems, it offers a precision-controlled fineness range, crucial for diverse production lines, including cement and steel manufacturing. With base capacities ranging from 8 to 150 tons per hour, the Raymond Bowl Mill integrates smoothly into direct and indirect firing systems, offering robust performance and energy efficiency. The system is engineered with both operational flexibility and maintenance ease in mind, accommodating various customer requirements in industrial processing environments.

Benefits

  • Accommodates diverse fuel types, enhancing fuel flexibility and reducing the need for multiple systems.
  • Optimizes energy consumption with efficient grinding and classifier systems.
  • Minimizes operational noise and vibration, ensuring a safer work environment.
  • Supports high-capacity demands with scalable throughput options up to 150 tons per hour.
  • Allows for quick adjustments in processing output without halting operations, maximizing production efficiency.

General


Applications
Solid fuels,Coal,Petroleum coke
End products
Pulverized lignite for energy production,Coke breeze for blast furnaces,Pulverized coal for power generation
Steps before
Drying,Grinding
Steps after
Packing,Classification
Input ingredients
bituminous coal,sub-bituminous coal,lignite coal,petroleum coke,solid fuels
Output ingredients
pulverized coal,95% passing 200 mesh,classified solid fuels
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Capacity
8–150 tph
Fineness
70% to 95% passing 200 mesh
Moisture Content
Up to 40%
Turndown Ratio
Up to 5 to 1
Fuel Types
Bituminous,sub-bituminous,lignite coals,and petroleum coke

Operating Characteristics


Working Mechanism
Vertical roller mill
Integrated Steps
Drying,pulverizing,classifying
Capacity Range
8 to 150 tph
Fineness Adjustment
Externally adjustable
Turndown Ratio
Up to 5 to 1
Fuel Compatibility
Bituminous,sub-bituminous,lignite coals,petroleum coke
Moisture Content Acceptance
As high as 40% for lignites
Classifier Type
Dynamic and static
Noise Level
Low
Operation Type
Direct and indirect solid fuel firing
Journal Loading
Spring or hydraulic
System Components
Mill,feeder,classifier,fan,cyclone,dust collector

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Handles variety of fuels
Bituminous,sub-bituminous,lignite coals,petroleum coke

Physical Characteristics


Machine footprint
Compact design
Feed method
Gravimetric,Volumetric Feeders
Control panel type
External

Custom Options


Integration possibilities
Dynamic and static classifiers
Journal loading
Spring or hydraulic
