Pulsed x-ray foreign object inspection for food packaging

Ensure your packaged goods are free from dangerous contaminants with compact, precise x-ray inspection technology designed for tight spaces and high-speed operations.

Detects Foreign Objects in Packaging

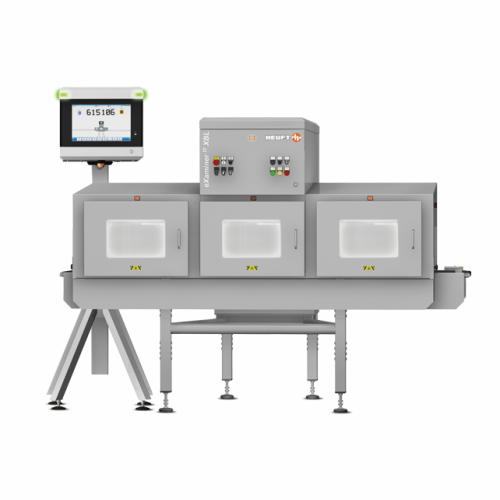

The HEUFT eXaminer II XS is an innovative foreign object detection system designed for beverage, food, and pharmaceutical packaging. It stands out with its compact design, making it ideal for limited spaces within high-speed production lines. Employing pulsed X-ray technology, it inspects items such as juice bottles, milk cartons, and liquid medicine vials for contaminants like metal fragments and hard plastics.

This system offers continuous monitoring with dual X-ray strobe coverage, ensuring thorough inspection from base to fill line without blind spots. It integrates seamlessly into production processes, with an intuitive human-machine interface enabling easy operation and quick format changes, enhancing operational efficiency.

Its energy-efficient design minimizes radiation exposure while maximizing detection reliability. The HEUFT eXaminer II XS also supports real-time product tracking and fault rejection through HEUFT’s network technologies, ensuring complete quality assurance and reducing product recalls. To maintain high safety and efficiency standards, it complies with industry-specific regulations and offers optional function expansions tailored to specific production requirements.

Benefits

  • Ensures product safety and quality by detecting foreign objects in all packaging areas.
  • Operates efficiently in high-speed lines, maintaining inspection accuracy without slowing production.
  • Minimizes operational costs with energy-efficient pulsed X-ray technology.
  • Simplifies maintenance and reduces downtime with robust, self-explanatory user guidance.
  • Delivers real-time monitoring and remote support for proactive fault management and minimal production disruptions.

General


Applications
Food,Beverages,Stand-up pouches,Composite packaging,Squeeze bottles,Food cans,Pharmaceutical products
End products
Ready-to-eat meal trays,Sauce packets,Milk cartons,Soft drink cans,Liquid medicine vials,Tea sachets,Juice bottles,Vitamin bottles,Protein powder pouches,Infant formula cans
Steps before
Filling,Packaging
Steps after
Rejection of faulty containers,Fill level detection,Label checking,Closure checking
Input ingredients
squeeze bottles,composite packaging,food cans,stand-up pouches,full containers
Output ingredients
containers without foreign objects,defect-free products,inspected containers,faulty products removed
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Detection type
X-ray
Automation
Highly automated
Compact footprint
Space-saving
Detection reliability
Maximum
Fill level detection
Initial detection
X-ray pulse emission
Pulsed X-ray
Contour inspection
Dynamic compensation
Sidewall inspection
Double X-ray pulse
Line speed
Adaptive
X-ray image processing
Real-time

Operating Characteristics


Working mechanism
Pulsed X-ray technology
Integrated steps
Product monitoring and self-tests
CIP/SIP
Not specified
Batch vs. continuous operation
Inline Continuous
Automation level
Highly automated
Energy efficiency
Reduced TCO
Changeover time
Automatic adjustment during brand and format changes
Cleaning method
Manual intervention with audiovisual guidance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Bottles / Cans / Pouches
Container size
Squeeze / Stand-up pouch
Foreign object types
Metal / Stone / Hard plastic
Packaging type
Composite / Food cans

Physical Characteristics


Machine footprint
Compact
Integration space
Space-saving
Casing design
Compact,hygienic
X-ray strobe positioning
Optimally positioned
Compact footprint
Yes
Conveyor integration
Directly at conveyor

Custom Options


Control panel type
HEUFTSPECTRUMII control terminal
Integration possibilities
Flexible positioning at the conveyor
Compact footprint
Extremely space-saving design
Discharge method
Automatic rejection system
