Propylene and nitrogen recovery system for industrial applications
In many industrial processes, valuable gases like propylene and nitrogen are lost as waste. This leads to both economic and environmental inefficiencies. Efficient recovery of these gases can minimize waste and maximize resource utilization.
Recover and purify valuable gases

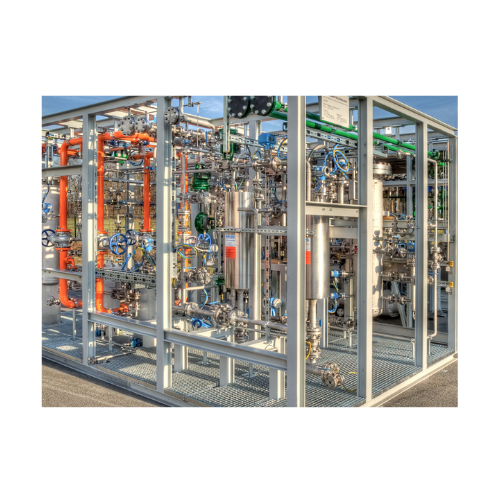

The BORSIG Propylene and Nitrogen Recovery Unit employs a combination of compression, condensation, and membrane separation to recover high-purity propylene and nitrogen from purge gas streams. This system features a straightforward integration into existing and new installations. The initial stage compresses and condenses the purge gas, segregating the condensate. The gas is then fed into a hydrocarbon-selective membrane system, separating propylene and nitrogen streams effectively. The propylene can be recovered in liquid or gaseous form, while the nitrogen achieves over 99 mol% purity. BORSIG’s proprietary membrane technology ensures high recovery rates and operational efficiency.
Benefits
- Recovery rates exceed 95% for propylene
- Nitrogen purity greater than 99 mol%
- Short return on investment period (1-3 years)
- Safe, reliable, and low-maintenance operation
- Adaptable for retrofit and new installations
